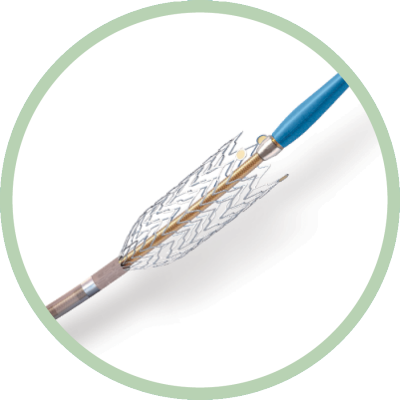

Image of R2P Misago peripheral stent

R2Pᵀᴹ MISAGO® RX Self-expanding Peripheral Stent

PRODUCT OVERVIEW

Confidently intervene from a radial approach


Available on a 200 cm shaft length

Logo for R2P Misago logo

PROVEN PERFORMANCE IN TREATING PAD PATIENTS WORLDWIDE 1-3

After one year in the OSPREY clinical trialᵃ:

Freedom from target lesion revascularization
Measured using Kaplan Meier analysis1

Sustained patency
Measured using Kaplan Meier analysis (PSVR of ≤ 2.4)1

Freedom from stent fracture
per stent post procedure1

aThese results are based on clinical data using femoral artery access and are not based on data specifically related to transradial access.

TERUMO IS IN EVERY DETAIL

Increased flexibility lowers the potential for stent fracture⁴:

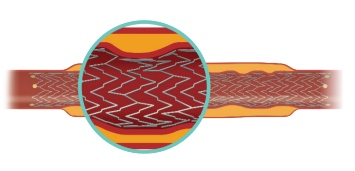

The continuous spine-free stent is designed to promote optimal blood flow and eliminate high-strain stress zones that can lead to fracture.4

Combined high-crush resistance4 and moderate radial force5 helps to maintain vessel patency along the full length of the lesion.

RESPONSIVE IN-VITRO PERFORMANCE IN SEVERE BEND SITUATIONS4

No stent fractures recorded during:

90% Torsion Test
Simulated rotation between supine and fetal position.



More flexible stents may be associated with improved patency.6

40% Compression Test
Simulated response during thigh
compression

PRECISE DEPLOYMENT AT THE LESION SITE¹

  • Minimizes jumping, recoil, or foreshortening - with a simplified thumbwheel system that allows for single operator deployment.
  • Enables exact stent placement - with the pushability of a triaxial catheter design.

R2P™ is the first and only portfolio of longer-length radial devices specifically designed for peripheral procedures, including above-the-knee PAD/CLI vascular interventions.

PRODUCT CODES

R2P™ MISAGO® RX Self-expanding Peripheral Stent (1 per box)

Product Code Description
SXR06040R 200 cm, 6 Fr, 6 mm x 40 mm
SXR06060R 200 cm, 6 Fr, 6 mm x 60 mm
SXR06080R 200 cm, 6 Fr, 6 mm x 80 mm
SXR06100R 200 cm, 6 Fr, 6 mm x 100 mm
SXR06120R 200 cm, 6 Fr, 6 mm x 120 mm
SXR06150R 200 cm, 6 Fr, 6 mm x 150 mm
SXR07040R 200 cm, 6 Fr, 7 mm x 40 mm
SXR07060R 200 cm, 6 Fr, 7 mm x 60 mm
SXR07080R 200 cm, 6 Fr, 7 mm x 80 mm
SXR07100R 200 cm, 6 Fr, 7 mm x 100 mm
SXR07120R 200 cm, 6 Fr, 7 mm x 120 mm
SXR07150R 200 cm, 6 Fr, 7 mm x 150 mm
SXR08040R 200 cm, 6 Fr, 8 mm x 40 mm
SXR08060R 200 cm, 6 Fr, 8 mm x 60 mm
SXR08080R 200 cm, 6 Fr, 8 mm x 80 mm
SXR08100R 200 cm, 6 Fr, 8 mm x 100 mm

DOCUMENTS

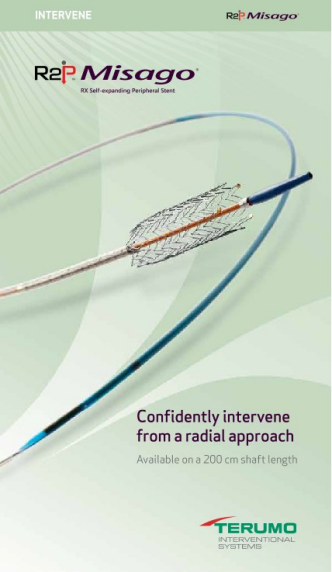

R2P Misago Brochure
R2P MISAGO Patient Guide
MISAGO Patient Implant Card
R2P Portfolio Brochure

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

  1. MISAGO® RX Self-expanding Peripheral Stent [Instructions for Use.] Tokyo, Japan: Terumo Corporation; 2020-02.
  2. Schulte KL, Müller-Hülsbeck S, Cao P, et al. MISAGO 1: first-in-man clinical trial with MISAGO nitinol stent. EuroIntervention. 2010;5:687-691.
  3. Schulte KL, Kralj I, Gissler HM, et al. MISAGO 2: one-year outcomes after implantation of the MISAGO self-expanding nitinol stent in the superficial femoral and popliteal arteries of 744 patients. J Endovasc Ther. 2012;19:774-788.
  4. Müller-Hülsbeck S, Schäfer PJ, Charalambous N, Yagi H, Heller M, Jahnke T. Comparison of second-generation stents for application in the superficial femoral artery: an in-vitro evaluation focusing on stent design. J Endovasc Ther. 2010;17(6):767-776.
  5. Deloose K, Bosiers M, Callaert J. TVR reduction in the SFA. Endovascular Today. October 2014;44-47. https://evtoday. com/2014/10/tvr-reduction-in-the-sfa/. Accessed March 6, 2019.
  6. Smouse R. Achieving long-term SFA treatment success: stent design or patient selection. International Symposium on Endovascular Therapy (ISET) 2014, January 18-22, 2014; Miami Beach, FL.

Indications
The R2P™ MISAGO® RX Self-expanding Peripheral Stent is indicated to improve luminal diameter in symptomatic patients with de novo or restenotic native lesions or occlusions of the Superficial Femoral Artery (SFA) and/or proximal popliteal artery with reference vessel diameters ranging from 4 mm to 7 mm and lesion length up to 150 mm.

Important Safety Information
Do not use this device in patients who exhibit angiographic evidence of severe thrombus in the target vessel or lesion site before/after undergoing Percutaneous Transluminal Angioplasty (PTA) procedure, patients with contraindication to antiplatelet and/or anticoagulation therapy, patients who are judged to have a lesion that prevents proper placement or deployment of the stent, a lesion that is within an aneurysm or an aneurysm with a proximal or distal segment to the lesion, or a lesion through which a guidewire cannot pass. This device should only be used by a physician who is familiar with, and well trained in, Percutaneous Transluminal Angioplasty (PTA) techniques, stent implantation, and transradial access.
