GLIDEACCESS® Micro Accessing Systems
ECHOGENIC OPTIONS
21 gauge echogenic or non-echogenic needle
WIRE TIP OPTIONS
Stainless steel or platinum-tipped nitinol wire

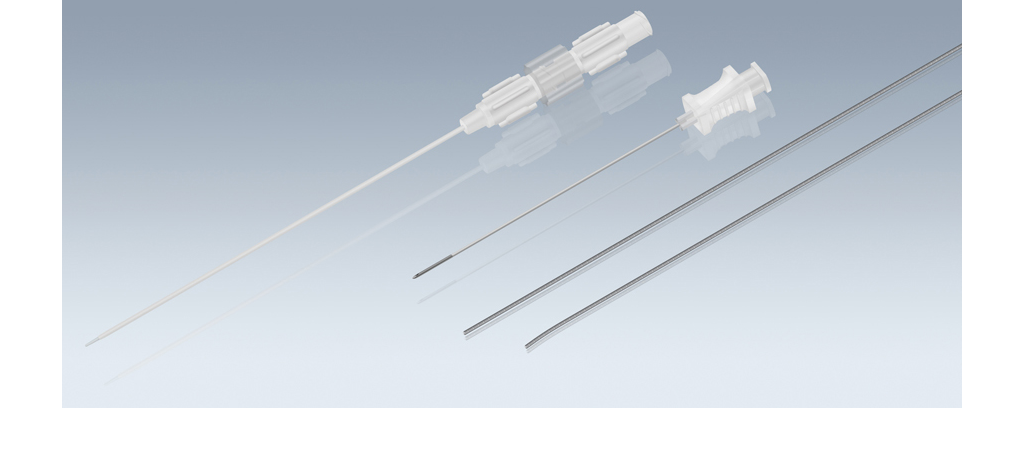

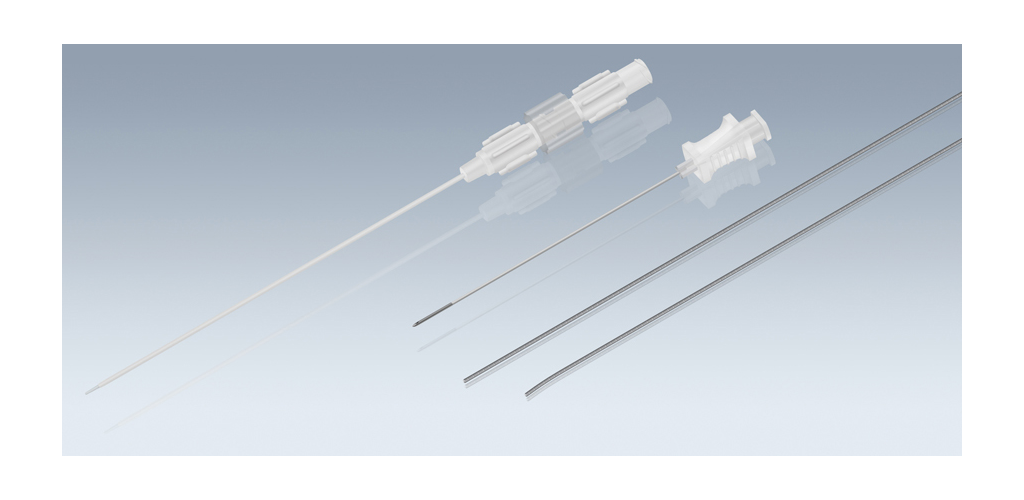

MICROPUNCTURE KIT
Coaxial dilator
0.018" guide wire
Entry needle
ABOUT THE GLIDEACCESS MICROPUNCTURE KIT
Coaxial microaccess available in 4Fr or 5Fr sizes
Percutaneous sheath introducer kit intended to be used for percutaneous introduction of 0.035 inch (approx. 0.89mm) or 0.038 inch (approx. 0.97mm) guide wires into the vascular system following a small 21 gauge needle puncture.
- 0.018 wire diameter with a 40cm length
- All components that enter blood vessels are radiopaque
PRODUCT CODES
GLIDEACCESS Systems - Non-Echogenic Needle
| Product Code | Coaxial Diameter (Fr) | Wire | Wire Length (cm) | Wire Diameter (in) |
| RSM03 | 4 | PLATINUM TIPPED NITINOL | 40 | 0.018 |
| RSM04 | 5 | PLATINUM TIPPED NITINOL | 40 | 0.018 |
GLIDEACCESS Systems - Echogenic Needle
| Product Code | Coaxial Diameter (Fr) | Wire | Wire Length (cm) | Wire Diameter (in) |
| RSM05 | 4 | STAINLESS STEEL | 40 | 0.018 |
| RSM06 | 5 | STAINLESS STEEL | 40 | 0.018 |
| RSM07 | 4 | PLATINUM TIPPED NITINOL | 40 | 0.018 |
| RSM08 | 5 | PLATINUM TIPPED NITINOL | 40 | 0.018 |
DOCUMENTS
ASSOCIATED PRODUCTS
REFERENCES

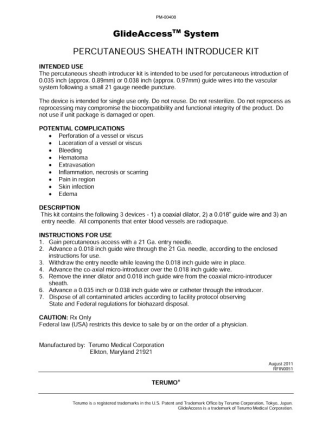

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
