PINNACLE® R/O II HIFLO Introducer Sheath
PRODUCT OVERVIEW

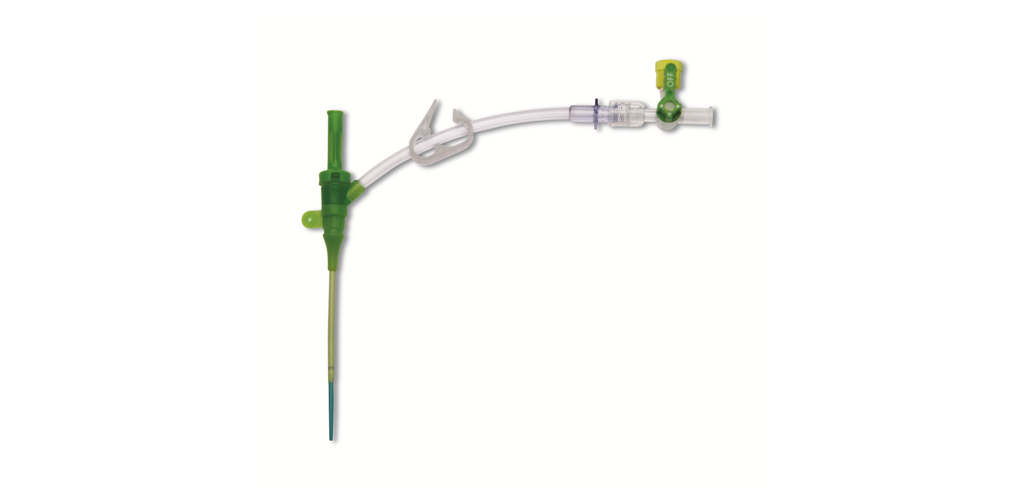

Higher flow rates with 45° side tube take-off provides smooth flow dynamic within the sheath.¹
The Palladium marker band is 5mm from the tip.¹
- Larger inner diameter side tube to accommodate higher flow rate¹
- Side tube pinch clamp to temporarily stop flow during procedure¹
Shorter 4 cm sheath and stiff dilator enhances pushability for easier and more efficient superficial access procedures¹
![View PINNACLE® R/O II HIFLO Introducer Sheaths Logo PINNACLE® R/O II HIFLO Introducer Sheaths Logo](/content/terumo-tis-www/en_us/home/products/access/pinnacle-r-o-ii-hiflo/_jcr_content/content-par/columncontainer/column2_par/layout_container/grid-content-par/columncontainer/column1_par/columncontainer/column2_par/image.img.png/1669277393755.png)
PRODUCT CODES
Item Code | Sheath Size (Fr) | Sheath Length (cm) | Max Guidewire Compatible | Short Guidewire |
RSB604H | 6 | 4 | 0.038" | Spring 0.035''/40cm |
RSB704H | 7 | 4 | 0.038" | Spring 0.035''/40cm |
RSB804H | 8 | 4 | 0.038" | Spring 0.035''/40cm |
RSB605H | 6 | 4 | 0.038" | No Wire |
RSB705H | 7 | 4 | 0.038" | No Wire |
RSB805H | 8 | 4 | 0.038" | No Wire |

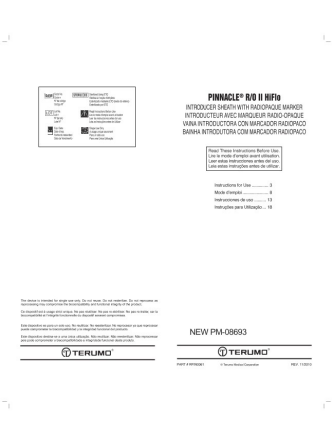

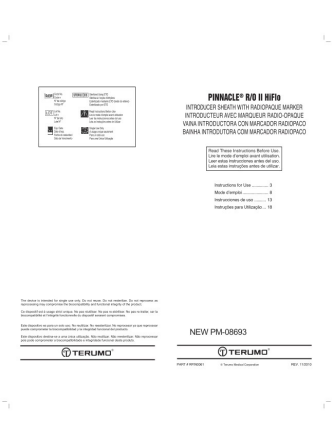

DOCUMENTS
REFERENCES
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
1. Data on File
