PROCEDURAL OVERVIEW
Choose the TERUMO difference—
experience the distinctive performance of our balloon dilatation catheters:
- Innovative shaft design provides robust strength for crossing lesions1
- Engineered for maximizing pushability1
a When compared to select competitors
b When RX tested against Boston Scientific Sterling™ Monorail™ and OTW tested against Bard Ultraverse® 0.018”
References:
1. Data on file.

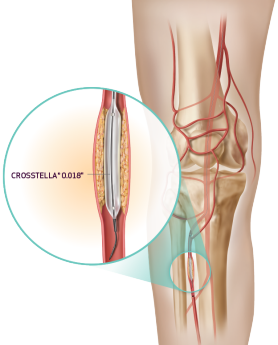

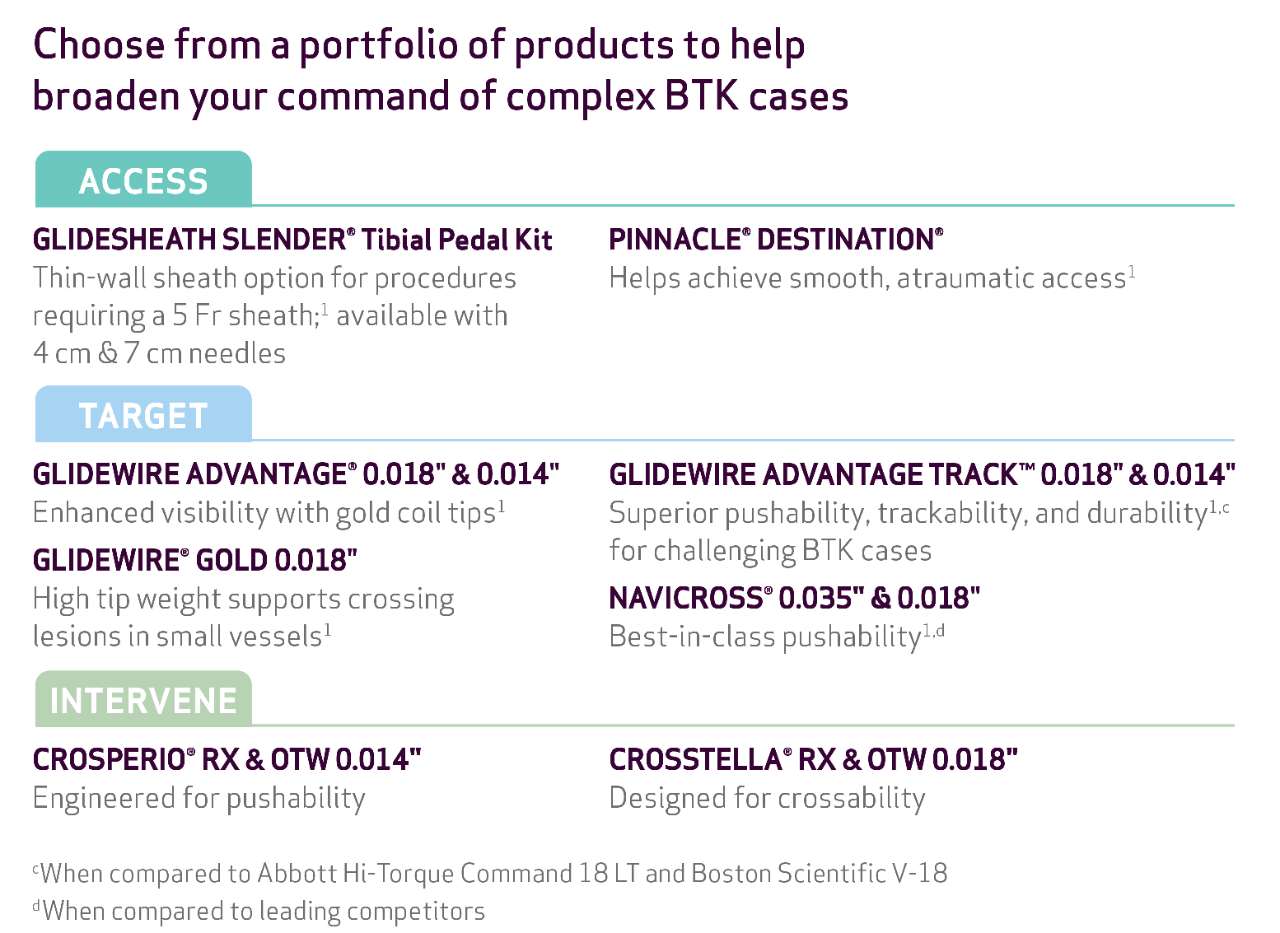

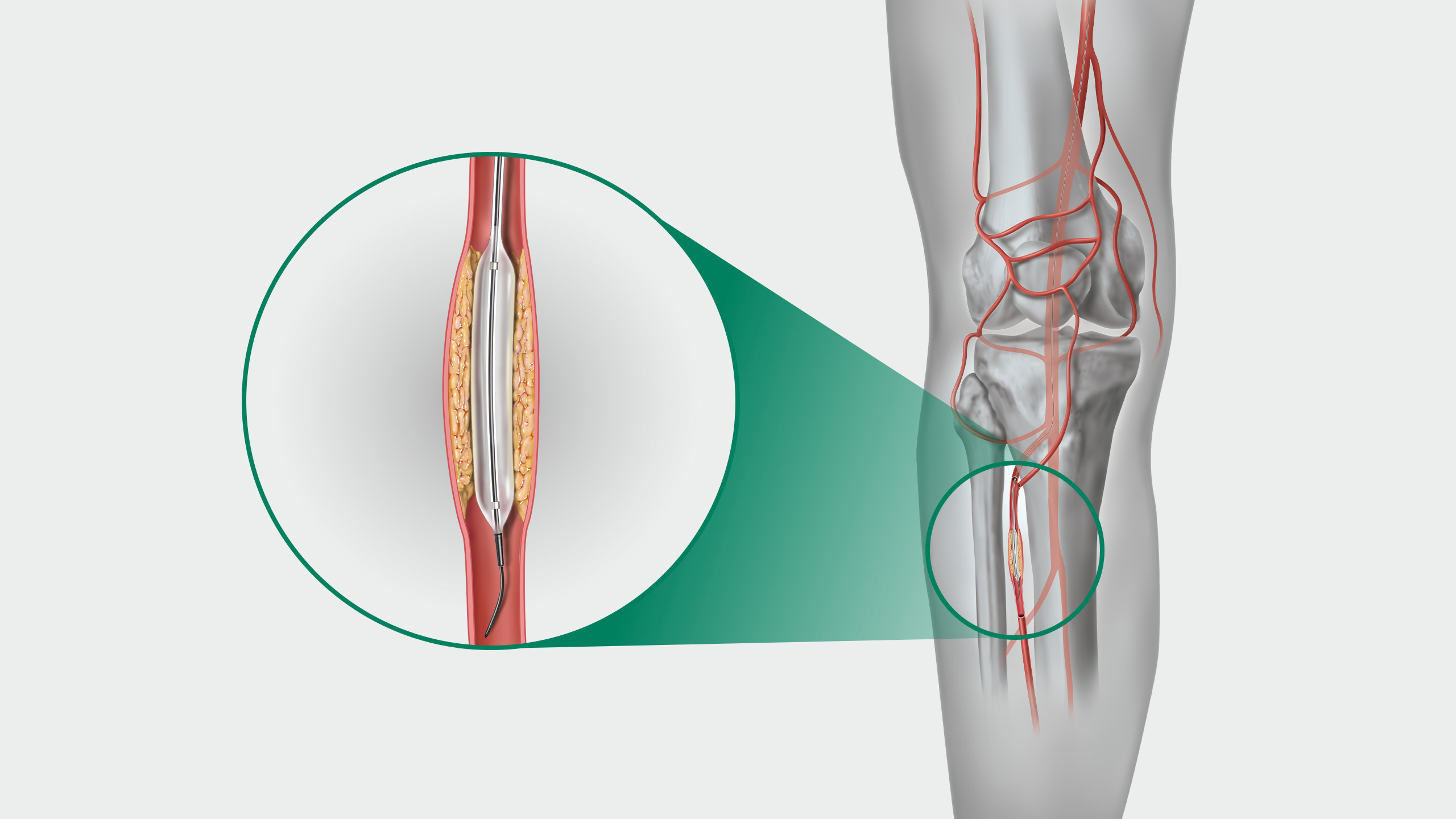

Complete support for complex BTK cases
TERUMO helps you reach and cross targeted lesions with innovative minimally invasive limb revascularization products and services.
PRODUCT CODES

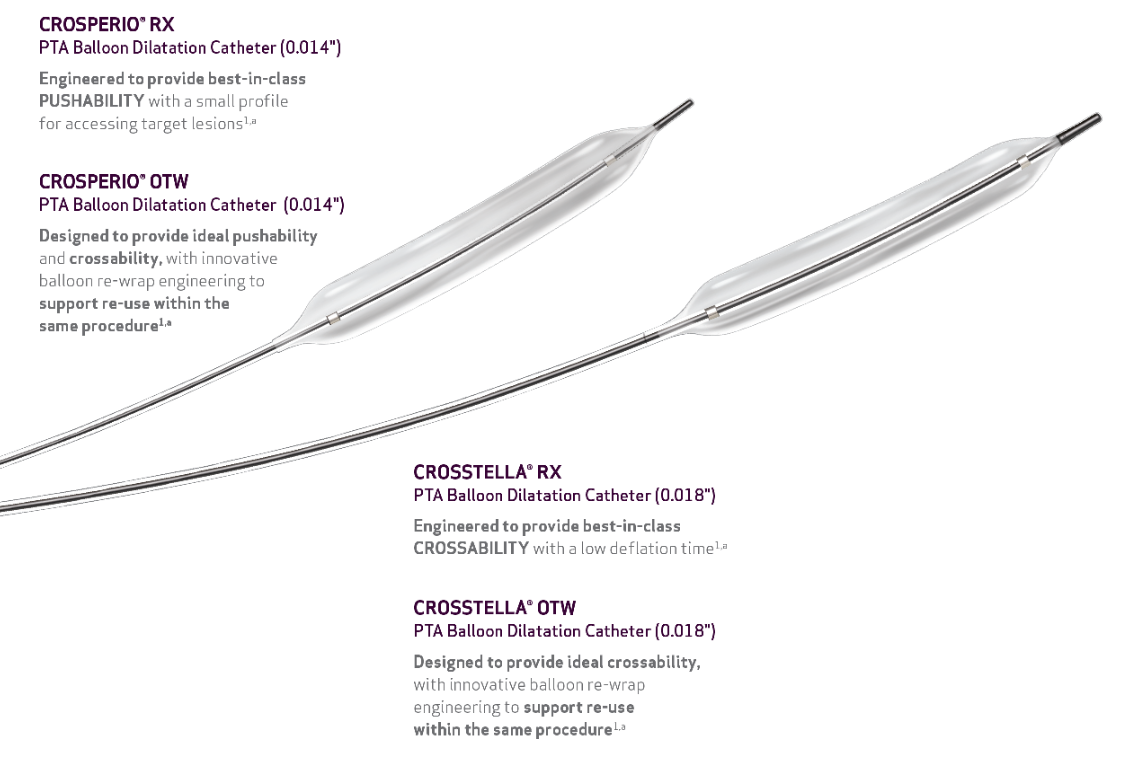

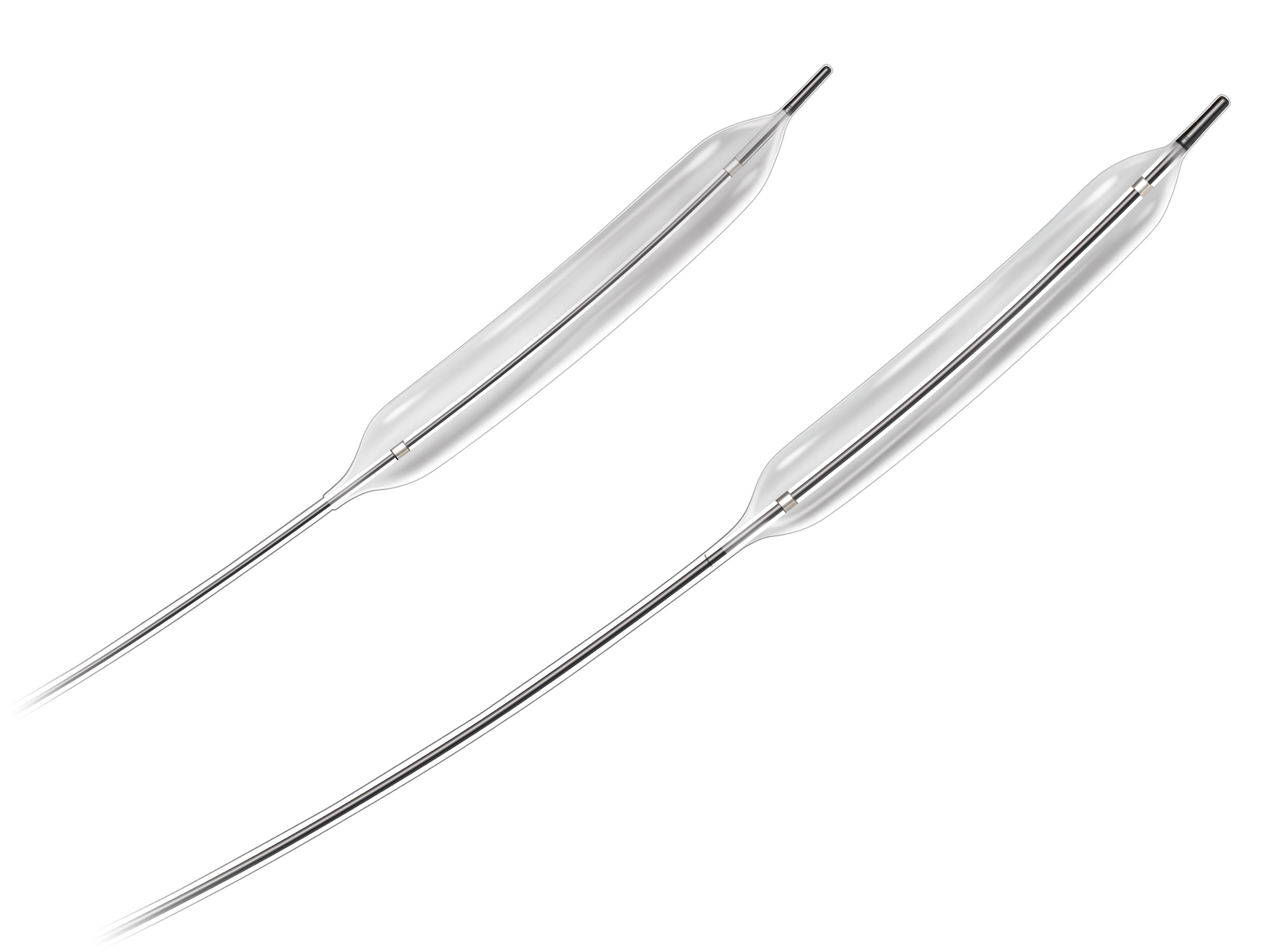

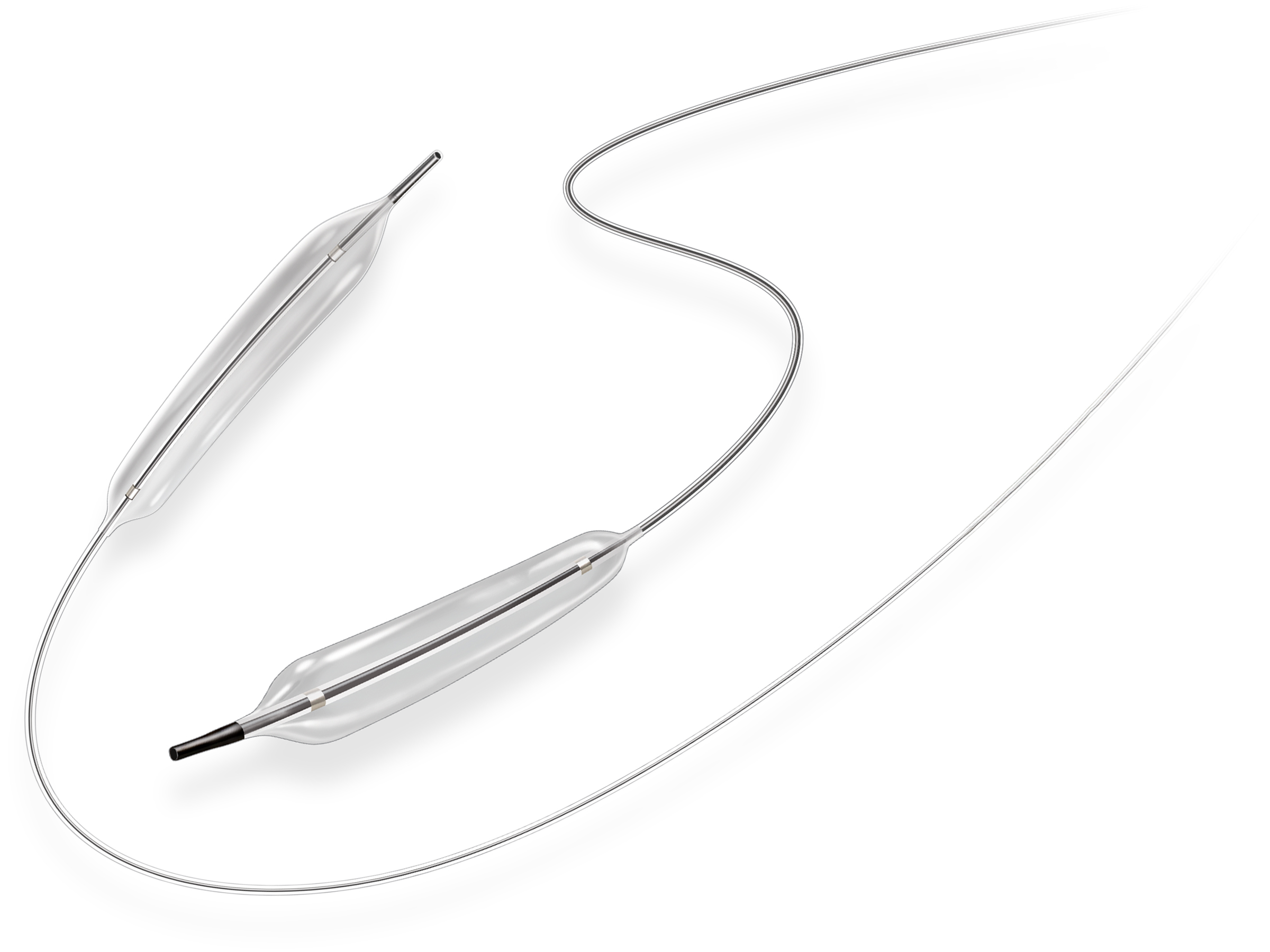

PTA BALLOON DILATATION CATHETERS
CROSSTELLA® RX 0.018" PTA Balloon Dilatation Catheter - 150cm / 4Fr
| BALLOON DIAMETER (mm) | BALLOON LENGTH (mm) | |||||||
| - | 20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 |
| 2 | BD-F20020LR | BD-F20040LR | BD-F20060LR | BD-F20080LR | BD-F20100LR | BD-F20120LR | BD-F20150LR | BD-F20200LR |
| 2.5 | BD-F25020LR | BD-F25040LR | BD-F25060LR | BD-F25080LR | BD-F25100LR | BD-F25120LR | BD-F25150LR | BD-F25200LR |
| 3 | BD-F30020LR | BD-F30040LR | BD-F30060LR | BD-F30080LR | BD-F30100LR | BD-F30120LR | BD-F30150LR | BD-F30200LR |
| 4 | BD-F40020LR | BD-F40040LR | BD-F40060LR | BD-F40080LR | BD-F40100LR | BD-F40120LR | BD-F40150LR | BD-F40200LR |
| 5 | BD-F50020LR | BD-F50040LR | BD-F50060LR | BD-F50080LR | BD-F50100LR | - | - | - |
| 6 | BD-F60020LR | BD-F60040LR | - | - | - | - | - | - |
CROSSTELLA® RX 0.018" PTA Balloon Dilatation Catheter -150cm / 5Fr
| BALLOON DIAMETER (mm) | BALLOON LENGTH (mm) | |||||||
| - | 20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 |
| 5 | - | - | - | - | - | BD-F50120LR | BD-F50150LR | BD-F50200LR |
| 6 | - | - | BD-F60060LR | BD-F60080LR | BD-F60100LR | BD-F60120LR | BD-F60150LR | BD-F60200LR |
CROSSTELLA® OTW 0.018" PTA Balloon Dilatation Catheter - 150cm / 4Fr
| BALLOON DIAMETER (mm) | BALLOON LENGTH (mm) | |||||||
| - | 20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 |
| 2 | BD-F20020LW | BD-F20040LW | BD-F20060LW | BD-F20080LW | BD-F20100LW | BD-F20120LW | BD-F20150LW | BD-F20200LW |
| 2.5 | BD-F25020LW | BD-F25040LW | BD-F25060LW | BD-F25080LW | BD-F25100LW | BD-F25120LW | BD-F25150LW | BD-F25200LW |
| 3 | BD-F30020LW | BD-F30040LW | BD-F30060LW | BD-F30080LW | BD-F30100LW | BD-F30120LW | BD-F30150LW | BD-F30200LW |
| 4 | BD-F40020LW | BD-F40040LW | BD-F40060LW | BD-F40080LW | BD-F40100LW | BD-F40120LW | BD-F40150LW | BD-F40200LW |
| 5 | BD-F50020LW | BD-F50040LW | BD-F50060LW | BD-F50080LW | BD-F50100LW | - | - | - |
| 6 | BD-F60020LW | BD-F60040LW | - | - | - | - | - | - |
CROSSTELLA® OTW 0.018" PTA Balloon Dilatation Catheter - 150cm / 5Fr
| BALLOON DIAMETER (mm) | BALLOON LENGTH (mm) | |||||||
| 20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 | |
| 5 | - | - | - | - | - | BD-F50120LW | BD-F50150LW | BD-F50200LW |
| 6 | - | - | BD-F60060LW | BD-F60080LW | BD-F60100LW | BD-F60120LW | BD-F60150LW | BD-F60200LW |
CROSPERIO® RX 0.014” PTA Balloon Dilatation Catheter – 150 cm / 4Fr
| BALLOON DIAMETER (mm) |
BALLOON LENGTH (mm) | |||||
| - | 20 | 40 | 80 | 120 | 150 | 200 |
| 1.5 | BD-B15020LR | BD-B15040LR | BD-B15080LR | BD-B15120LR | - | - |
| 2 | - | BD-B20040LR | BD-B20080LR | BD-B20120LR | BD-B20150LR | BD-B20200LR |
| 2.5 | - | BD-B25040LR | BD-B25080LR | BD-B25120LR | BD-B25150LR | BD-B25200LR |
| 3 | - | BD-B30040LR | BD-B30080LR | BD-B30120LR | BD-B30150LR | BD-B30200LR |
| 3.5 | - | BD-B35040LR | BD-B35080LR | BD-B35120LR | BD-B35150LR | BD-B35200LR |
| 4 | - | BD-B40040LR | BD-B40080LR | BD-B40120LR | BD-B40150LR | BD-B40200LR |
CROSPERIO® OTW 0.014” PTA Balloon Dilatation Catheter – 65 cm / 4 Fr
| BALLOON DIAMETER (mm) | BALLOON LENGTH (mm) | |
| 80 | 200 | |
| 2 | BD-B20080SW | BD-B20200SW |
| 2.5 | BD-B25080SW | BD-B25200SW |
| 3 | BD-B30080SW | BD-B30200SW |
| 3.5 | BD-B35080SW | BD-B35200SW |
| 4 | BD-B40080SW | BD-B40200SW |
CROSPERIO® OTW 0.014” PTA Balloon Dilatation Catheter – 150 cm / 4Fr
| BALLOON DIAMETER (mm) | BALLOON LENGTH (mm) | |||||
| - | 20 | 40 | 80 | 120 | 150 | 200 |
| 1.5 | BD-B15020LW | BD-B15040LW | BD-B15080LW | BD-B15120LW | - | - |
| 2 | - | BD-B20040LW | BD-B20080LW | BD-B20120LW | BD-B20150LW | BD-B20200LW |
| 2.5 | - | BD-B25040LW | BD-B25080LW | BD-B25120LW | BD-B25150LW | BD-B25200LW |
| 3 | - | BD-B30040LW | BD-B30080LW | BD-B30120LW | BD-B30150LW | BD-B30200LW |
| 3.5 | - | BD-B35040LW | BD-B35080LW | BD-B35120LW | BD-B35150LW | BD-B35200LW |
| 4 | - | BD-B40040LW | BD-B40080LW | BD-B40120LW | BD-B40150LW | BD-B40200LW |

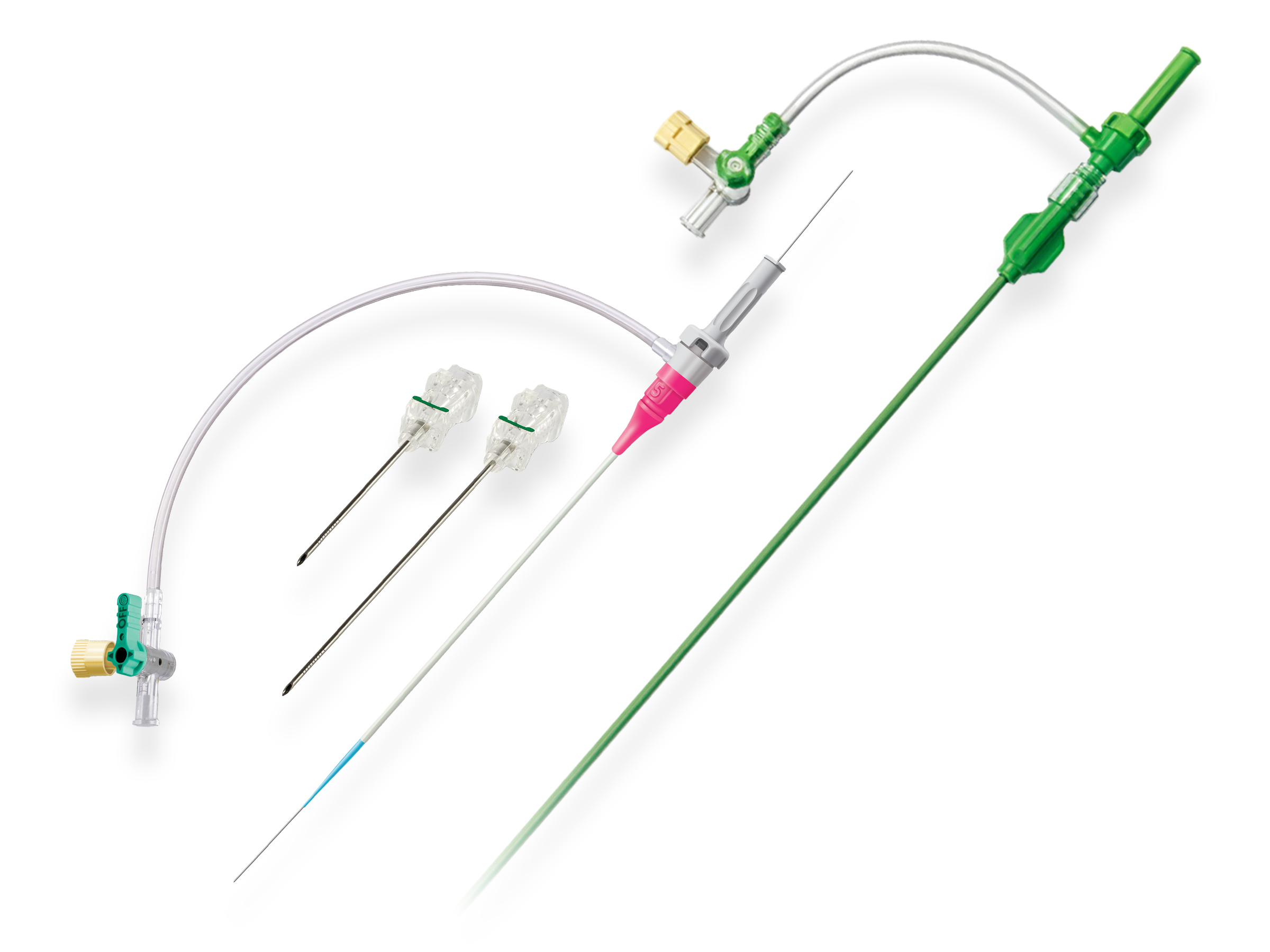

TIBIAL PEDAL KIT
GLIDESHEATH SLENDER® Tibial Pedal Kit* includes:
| CODE | SHEATH | DILATOR | MINI-GUIDEWIRE | NEEDLE | NEEDLE LENGTH |
| 52-1050 | 5 Fr 10 cm | 0.021" | Nitinol/Floppy | 21G-19G (Tapered) | 4 cm (40 mm) |
| 0.021" x 43 cm | Echogenic | ||||
| 51-1050 | 5 Fr 10 cm | 0.021" | Nitinol/Floppy | 21G-19G (Tapered) | 7 cm (70 mm) |
| 0.021" x 43 cm | Echogenic |
*5 per Shelf Box | Sheath Length: 10 cm | Wire Length: 43 cm | 4 cm or 7 cm Needle
GUIDING SHEATHS
PINNACLE® DESTINATION® Guiding Sheaths
| FRENCH SIZE | PRODUCT CODE | LENGTH (CM) | HYDROPHILIC COATING LENGTH (CM) | VALVE TYPE | CURVE STYLE |
| 5Fr | 54-54502 | 45 | 5 | Cross-Cut | Hockey Stick |
| 5Fr | 54-54503 | 45 | 5 | Cross-Cut | Multi-Purpose |
| 5Fr | 54-54504 | 45 | 5 | Cross-Cut | RDC |
| 5Fr | 54-54501 | 45 | 35 | Cross-Cut | Straight |
| 6Fr | RSR02 | 45 | 5 | Cross-Cut | Hockey Stick |
| 6Fr | RSR14 | 45 | 5 | Cross-Cut | LIMA |
| 6Fr | RSR03 | 45 | 5 | Cross-Cut | Multi-Purpose |
| 6Fr | RSR13 | 45 | 5 | Cross-Cut | RDC |
| 6Fr | RSR01 | 45 | 5 | Cross-Cut | Straight |
| 6Fr | RSR08 | 45 | 5 | Tuohy-Borst | Hockey Stick |
| 6Fr | RSR18 | 45 | 5 | Tuohy-Borst | LIMA |
| 6Fr | RSR09 | 45 | 5 | Tuohy-Borst | Multi-Purpose |
| 6Fr | RSR17 | 45 | 5 | Tuohy-Borst | RDC |
| 6Fr | RSR07 | 45 | 5 | Tuohy-Borst | Straight |
| 6Fr | 54-64501 | 45 | 35 | Cross-Cut | Straight |
| 6Fr | 54-64506 | 45 | 35 | Tuohy-Borst | Straight |
| 6Fr | RSP01 | 65 | 35 | Cross-Cut | Straight |
| 6Fr | RSP03 | 65 | 35 | Tuohy-Borst | Straight |
| 6Fr | RSC07 | 90 | 15 | Cross-Cut | Multi-Purpose |
| 6Fr | RSC05 | 90 | 15 | Cross-Cut | Straight |
| 6Fr | RSC03 | 90 | 15 | Tuohy-Borst | Multi-Purpose |
| 6Fr | RSC01 | 90 | 15 | Tuohy-Borst | Straight |
| 7Fr | RSR05 | 45 | 5 | Cross-Cut | Hockey Stick |
| 7Fr | RSR16 | 45 | 5 | Cross-Cut | LIMA |
| 7Fr | RSR06 | 45 | 5 | Cross-Cut | Multi-Purpose |
| 7Fr | RSR15 | 45 | 5 | Cross-Cut | RDC |
| 7Fr | RSR04 | 45 | 5 | Cross-Cut | Straight |
| 7Fr | RSR11 | 45 | 5 | Tuohy-Borst | Hockey Stick |
| 7Fr | RSR20 | 45 | 5 | Tuohy-Borst | LIMA |
| 7Fr | RSR12 | 45 | 5 | Tuohy-Borst | Multi-Purpose |
| 7Fr | RSR19 | 45 | 5 | Tuohy-Borst | RDC |
| 7Fr | RSR10 | 45 | 5 | Tuohy-Borst | Straight |
| 7Fr | 54-74501 | 45 | 35 | Cross-Cut | Straight |
| 7Fr | 54-74506 | 45 | 35 | Tuohy-Borst | Straight |
| 7Fr | RSP02 | 65 | 35 | Cross-Cut | Straight |
| 7Fr | RSP04 | 65 | 35 | Tuohy-Borst | Straight |
| 7Fr | RSC08 | 90 | 15 | Cross-Cut | Multi-Purpose |
| 7Fr | RSC06 | 90 | 15 | Cross-Cut | Straight |
| 7Fr | RSC04 | 90 | 15 | Tuohy-Borst | Multi-Purpose |
| 7Fr | RSC02 | 90 | 15 | Tuohy-Borst | Straight |
| 8Fr | 54-84501 | 45 | 35 | Cross-Cut | Straight |
| 8Fr | 54-84506 | 45 | 35 | Tuohy-Borst | Straight |
| 8Fr | 54-86501 | 65 | 35 | Cross-Cut | Straight |
| 8Fr | 54-86506 | 65 | 35 | Tuohy-Borst | Straight |
| 8Fr | 54-89001 | 90 | 60 | Cross-Cut | Straight |
| 8Fr | 54-89006 | 90 | 60 | Tuohy-Borst | Straight |

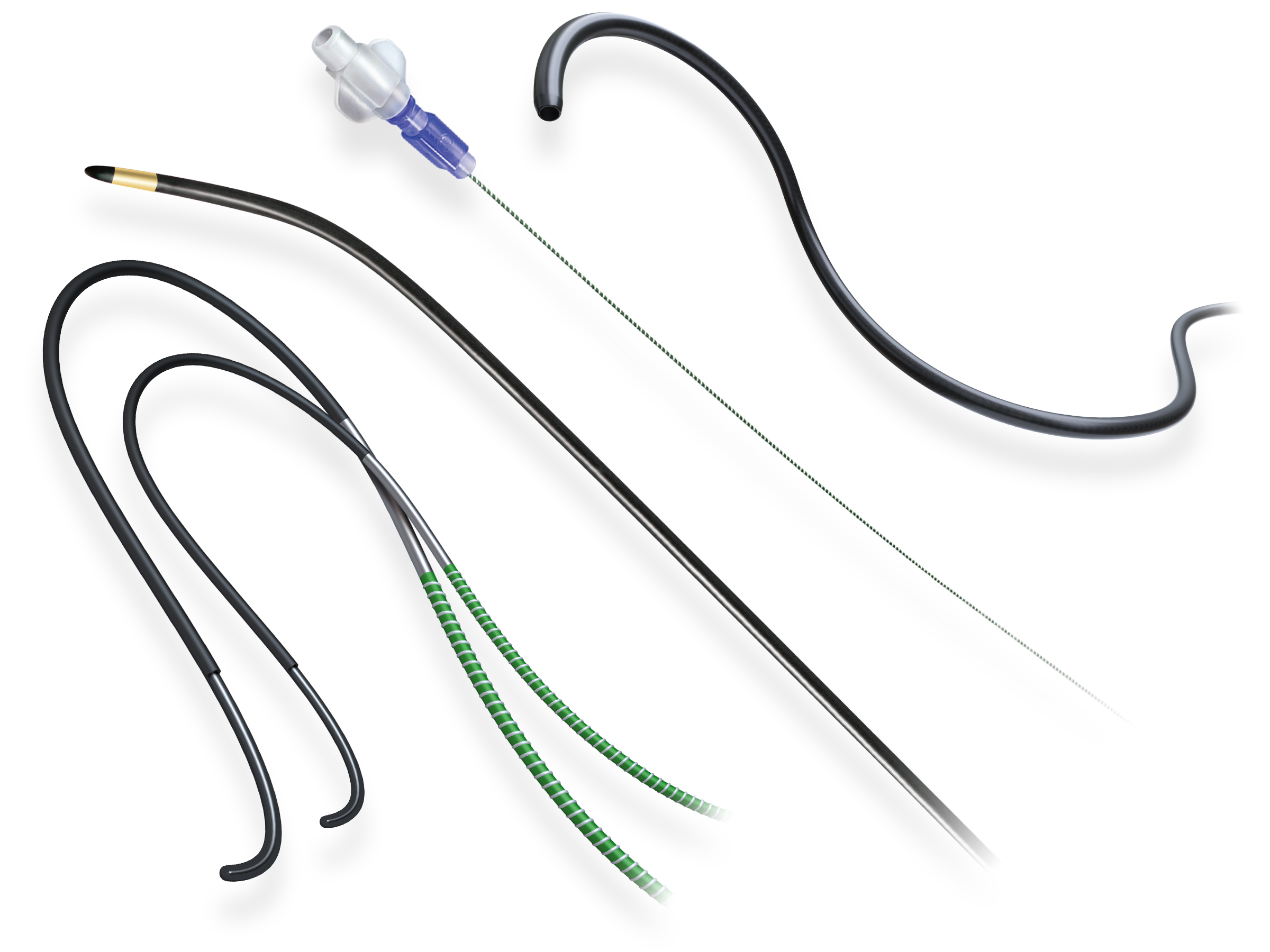

GUIDEWIRES
GLIDEWIRE ADVANTAGE® Peripheral Guidewires
| PRODUCT CODE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GA1418 | 0.014" | 180cm | 1cm | Angle |
| GA1430 | 0.014" | 300cm | 1cm | Angle |
| GA1818 | 0.018" | 180cm | 1cm | Angle |
| GA1830 | 0.018" | 300cm | 1cm | Angle |
| GA3501 | 0.035" | 180cm | 5cm | Angle |
| GA3502 | 0.035" | 260cm | 5cm | Angle |
GLIDEWIRE ADVANTAGE TRACK™ Peripheral Guidewire
| PRODUCT CODE |
DIAMETER | TOTAL LENGTH |
SPIRAL PTFE PROXIMAL COATING LENGTH | DISTAL GLIDEWIRE® LENGTH | FLEXIBLE TIP LENGTH (TAPER) | TIP SHAPE |
| GAT1418 | 0.014" | 180 cm | 155 cm | 25 cm | 1 cm | 35˚ Angle |
| GAT1430 | 0.014" | 300 cm | 275 cm | 25 cm | 1 cm | 35˚ Angle |
| GAT1818 | 0.018" | 180 cm | 155 cm | 25 cm | 1 cm | 35˚ Angle |
| GAT1830 | 0.018" | 300 cm | 275 cm | 25 cm | 1 cm | 35˚ Angle |
GLIDEWIRE® GOLD Hydrophilic Coated Guidewires
| PRODUCT CODE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | RADIOPAQUE LENGTH | TIP SHAPE |
| GM1811 | 0.018" | 180cm | 3cm | 1mm | 45° Angle |
| GM1813 | 0.018" | 180cm | 3cm | 1mm | 70° Angle |
| GM1831 | 0.018" | 300cm | 3cm | 1mm | 45° Angle |
| GM1832 | 0.018" | 300cm | 3cm | 1mm | 70° Angle |
CATHETERS
NAVICROSS® 0.035" Support Catheter
| PRODUCT CODE | WIRE COMPATIBILITY | CATHETER LENGTH | TIP SHAPE |
| NC35650 | 0.035" | 65cm | Straight |
| NC35651 | 0.035" | 65cm | 30° Angle |
| NC35900 | 0.035" | 90cm | Straight |
| NC35901 | 0.035" | 90cm | 30° Angle |
| NC35130 | 0.035" | 135cm | Straight |
| NC35131 | 0.035" | 135cm | 30° Angle |
| NC35150 | 0.035" | 150cm | Straight |
| NC35151 | 0.035" | 150cm | 30° Angle |
NAVICROSS® 0.018" Support Catheter
| PRODUCT CODE | WIRE COMPATIBILITY | CATHETER LENGTH | TIP SHAPE |
| NC18650 | 0.018" | 65 cm | Straight |
| NC18651 | 0.018" | 65 cm | Angle |
| NC18900 | 0.018" | 90 cm | Straight |
| NC18901 | 0.018" | 90 cm | Angle |
| NC18130 | 0.018" | 135 cm | Straight |
| NC18131 | 0.018" | 135 cm | Angle |
| NC18150 | 0.018" | 150 cm | Straight |
| NC18151 | 0.018" | 150 cm | Angle |
DOCUMENTS
REFERENCES
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
- Data on file.
