HEARTRAIL® III Guiding Catheter
PRODUCT OVERVIEW
A family of radial guiding catheters that provides enhanced back up support in comparison to standard femoral guiding catheter shapes - resulting in simplified procedures.1
![View Heartrail® logo](/content/terumo-tis-www/en_us/home/products/catheters/heartrail/_jcr_content/content-par/columncontainer/column2_par/layout_container/grid-content-par/columncontainer_191691442/column1_par/columncontainer/column2_par/image.img.png/1669274938579.png)

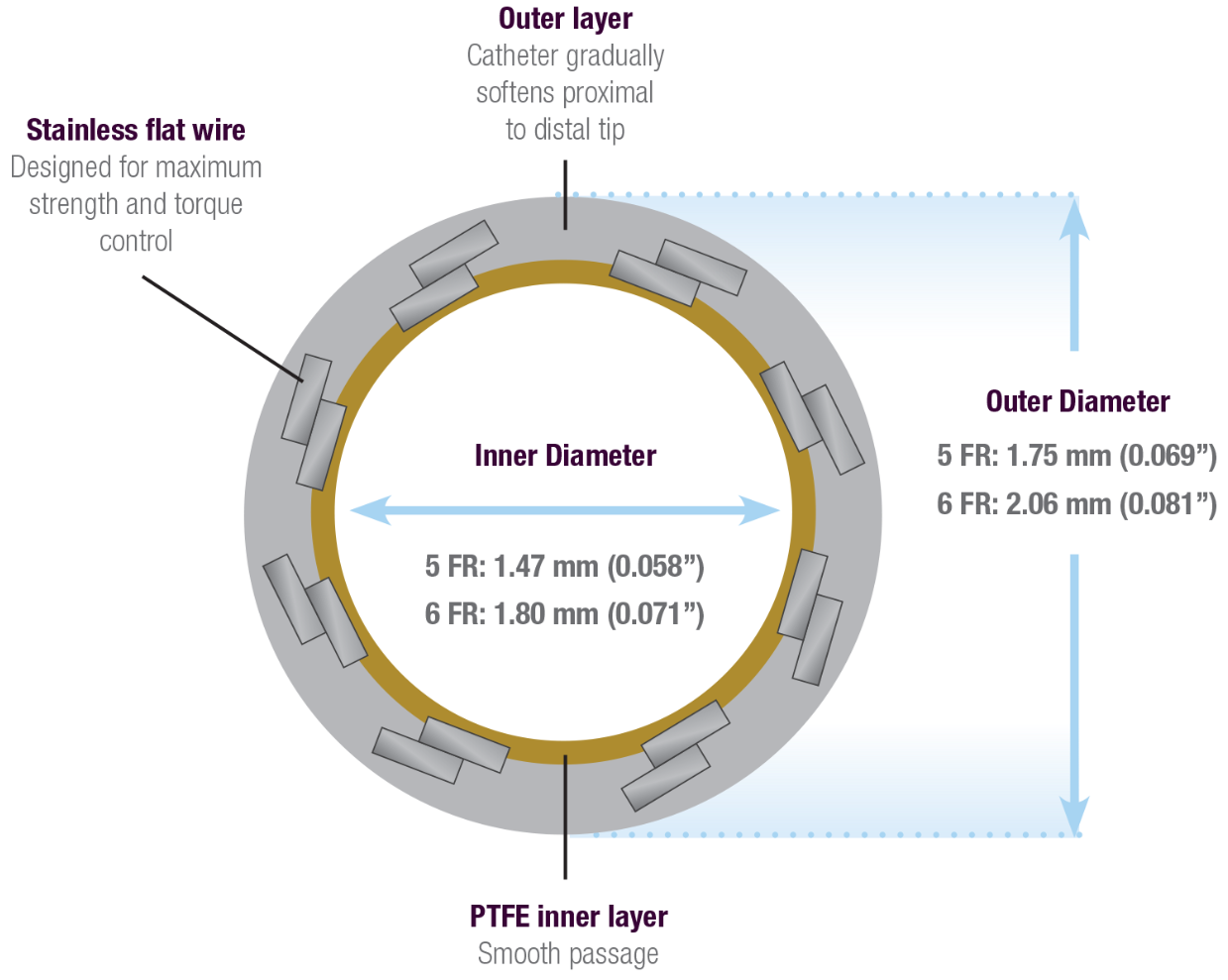

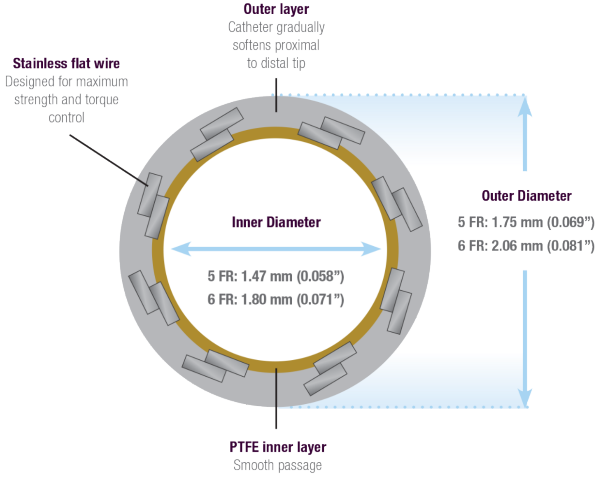

UNIQUE DESIGN
- Flexible Shaft: Designed for trackability even in tortuous vessels
- High Radiopacity: Enhanced by distal braiding for visibility under fluoroscopy
![View Heartrail® cross section](/content/terumo-tis-www/en_us/home/products/catheters/heartrail/_jcr_content/content-par/columncontainer/column2_par/layout_container/grid-content-par/columncontainer_191691442/column1_par/columncontainer_587082815/column1_par/columncontainer/column1_par/image.img.png/1669274949488.png)

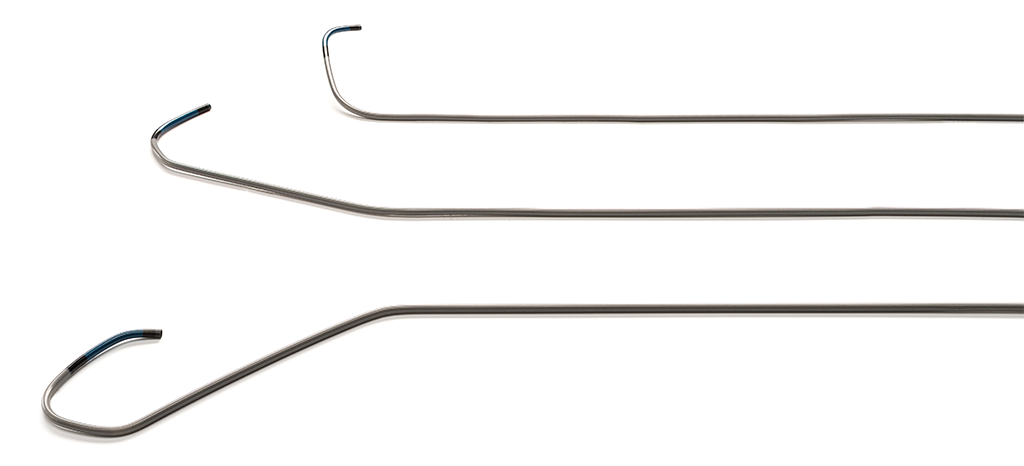

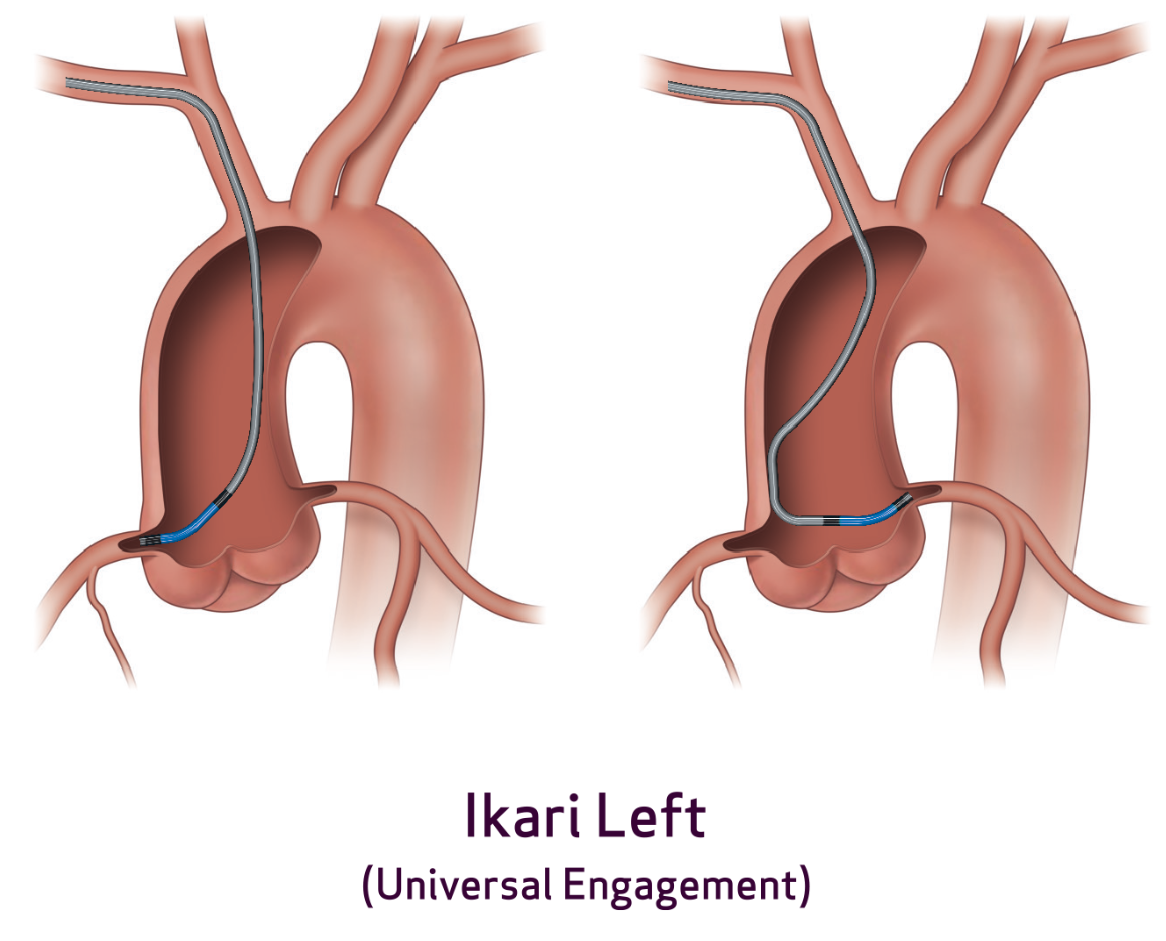

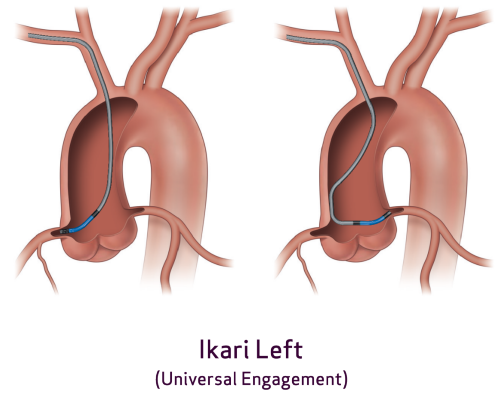

UNIVERSAL SHAPES
- Offer capability of accessing the right and left coronary arteries, potentially avoiding catheter exchanges
![View Heartrail® Ikari Left](/content/terumo-tis-www/en_us/home/products/catheters/heartrail/_jcr_content/content-par/columncontainer/column2_par/layout_container/grid-content-par/columncontainer_191691442/column1_par/columncontainer_587082815/column2_par/columncontainer/column1_par/image.img.png/1669274952811.png)

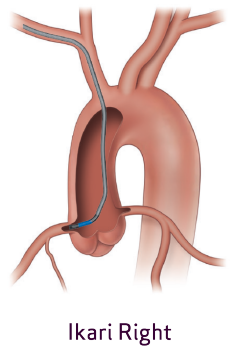

ENHANCED BACK UP SUPPORT
- Catheter designed to use contralateral wall resulting in enhanced back-up support
![View Heartrail® backup support](/content/terumo-tis-www/en_us/home/products/catheters/heartrail/_jcr_content/content-par/columncontainer/column2_par/layout_container/grid-content-par/columncontainer_191691442/column1_par/columncontainer_587082815/column3_par/columncontainer/column1_par/image.img.png/1669274952858.png)
PRODUCT CODES
HEARTRAIL® III Guiding Catheter Product Codes
Shape Category | Shape Name | Product Code | Size (Fr) | Length (cm) | Side Holes |
Ikari Left | IL3.5 | 40-5370 | 5 Fr | 100 | 0 |
40-6370 | 6 Fr | 100 | 0 | ||
40-6371 | 6 Fr | 100 | 2 | ||
IL3.75 | 40-5372 | 5 Fr | 100 | 0 | |
40-6372 | 6 Fr | 100 | 0 | ||
40-6377 | 6 Fr | 100 | 2 | ||
IL4.0 | 40-5373 | 5 Fr | 100 | 0 | |
40-6373 | 6 Fr | 100 | 0 | ||
40-6374 | 6 Fr | 100 | 2 | ||
IL4.5 | 40-5375 | 5 Fr | 100 | 0 | |
40-6375 | 6 Fr | 100 | 0 | ||
40-6376 | 6 Fr | 100 | 2 | ||
Ikari Right | IR1.0 | 40-5380 | 5 Fr | 100 | 0 |
40-6380 | 6 Fr | 100 | 0 | ||
40-6383 | 6 Fr | 100 | 2 | ||
IR1.5 | 40-5381 | 5 Fr | 100 | 0 | |
40-6381 | 6 Fr | 100 | 0 | ||
40-6384 | 6 Fr | 100 | 2 | ||
IR2.0 | 40-5382 | 5 Fr | 100 | 0 | |
40-6382 | 6 Fr | 100 | 0 | ||
40-6385 | 6 Fr | 100 | 2 | ||
TIG | TIG4.0 | 40-5311 | 5 Fr | 100 | 0 |
40-6311 | 6 Fr | 100 | 0 |

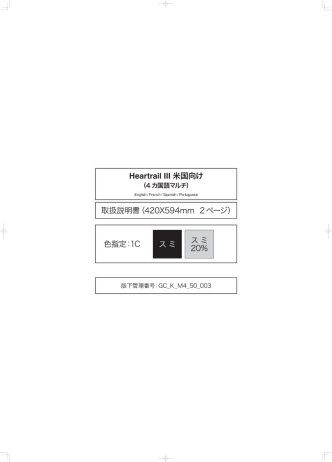

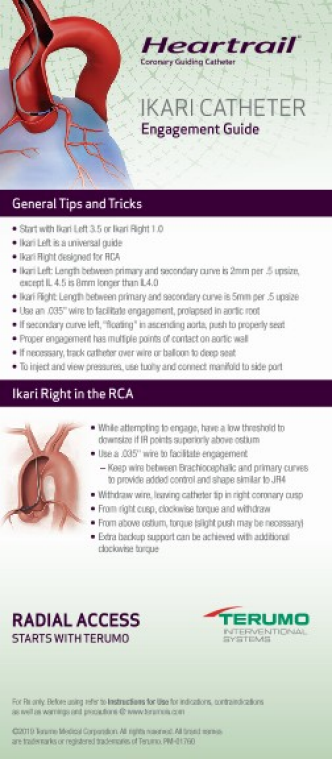

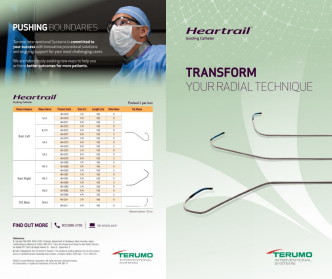

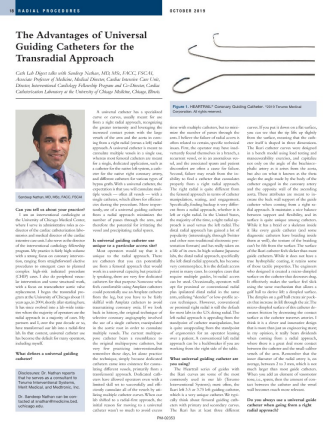

DOCUMENTS
REFERENCES
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
- Ikari Y, Nagaoka M, Kim JY, Morino Y, Tanabe T. The physics of guiding catheters for the left coronary artery in transfemoral and transradial interventions. J Invasive Cardiol. 2005 Dec; 17(12): 636-641.
