AZUR™ Peripheral HydroCoil Embolization System
PRODUCT OVERVIEW
SUPERIOR FILLING VOLUME AND PACKING DENSITY
AZUR Peripheral Hydrocoil has superior mechanical stability2-5 and offers the potential to use less coils which may provide cost saving per procedure.5
SUPERIOR FILLING VOLUME AND PACKING DENSITY COMPARED TO BARE PLATINUM COILS4

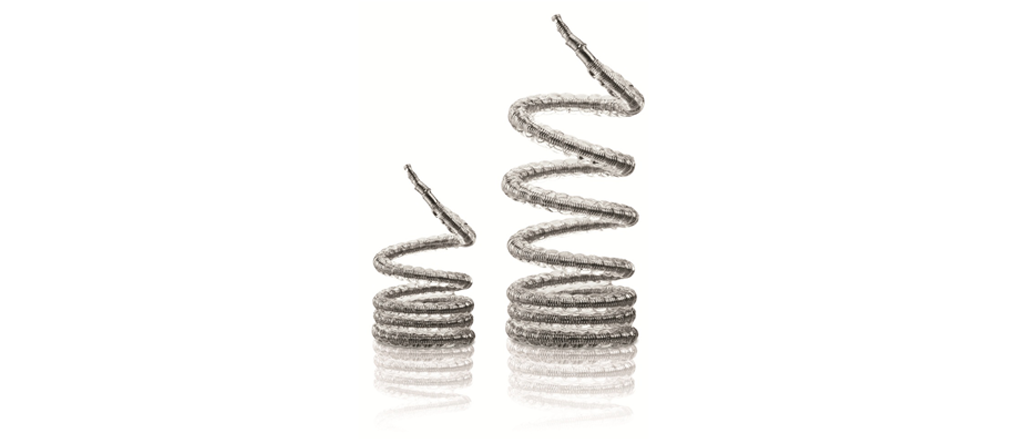

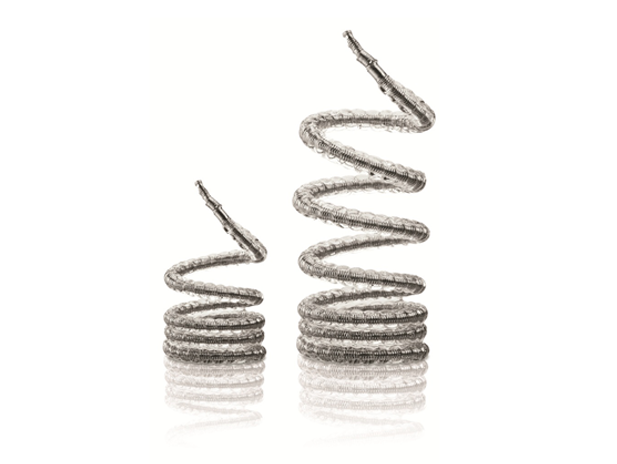

The AZUR Peripheral HydroCoil Embolization System combines a platinum coil and an expandable hydrogel polymer. In concert, these elements provide a uniquely stable and permanent platform for blood stasis, thrombus organization, and neointima formation.1, 2, 3

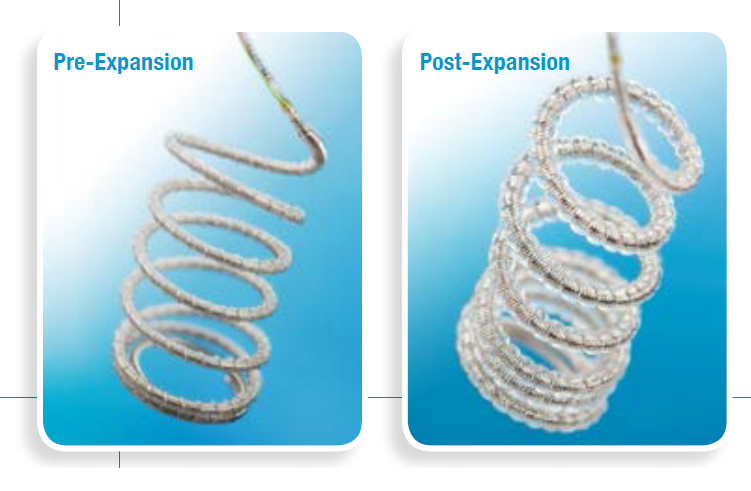

AZUR’s hydrogel coating undergoes limited expansion within the first 3 minutes, and fully expands within 20 minutes*. The result is greater filling and mechanical stability with fewer coils – nearly 5 times more filling volume for the 0.018" coil and 4 times more filling volume for the .035" coil (versus platinum coils of the same size). In other words, AZUR works harder so you don’t have to.
IN-SERVICE VIDEO
AZUR Detachable HydroCoil Inservice Guide (Video)
AZUR Pushable HydroCoil Inservice Guide (Video)
PRODUCT CODES DETACHABLE
AZUR HydroCoil Detachable .018"
| Product Code | Description 1/BX |
| 45-480202 | AZUR 18D System 2mm x 2cm |
| 45-480204 | AZUR 18D System 2mm x 4cm |
| 45-480302 | AZUR 18D System 3mm x 2cm |
| 45-480305 | AZUR 18D System 3mm x 5cm |
| 45-480310 | AZUR 18D System 3mm x 10cm |
| 45-480405 | AZUR 18D System 4mm x 5cm |
| 45-480410 | AZUR 18D System 4mm x 10cm |
| 45-480415 | AZUR 18D System 4mm x 15cm |
| 45-480420 | AZUR 18D System 4mm x 20cm |
| 45-480505 | AZUR 18D System 5mm x 5cm |
| 45-480510 | AZUR 18D System 5mm x 10cm |
| 45-480515 | AZUR 18D System 5mm x 15cm |
| 45-480520 | AZUR 18D System 5mm x 20cm |
| 45-480610 | AZUR 18D System 6mm x 10cm |
| 45-480615 | AZUR 18D System 6mm x 15cm |
| 45-480620 | AZUR 18D System 6mm x 20cm |
| 45-480810 | AZUR 18D System 8mm x 10cm |
| 45-480815 | AZUR 18D System 8mm x 15cm |
| 45-480820 | AZUR 18D System 8mm x 20cm |
| 45-481010 | AZUR 18D System 10mm x 10cm |
| 45-481015 | AZUR 18D System 10mm x 15cm |
| 45-481020 | AZUR 18D System 10mm x 20cm |
| 45-481215 | AZUR 18D System 12mm x 15cm |
| 45-481220 | AZUR 18D System 12mm x 20cm |
| 45-481515 | AZUR 18D System 15mm x 15cm |
| 45-481520 | AZUR 18D System 15mm x 20cm |
| 45-481530 | AZUR 18D System 15mm x 30cm |
| 45-482020 | AZUR 18D System 20mm x 20cm |
| 45-482030 | AZUR 18D System 20mm x 30cm |
PRODUCT CODES PUSHABLE
AZUR HydroCoil Detachable .035"
| Product Code | Description 1/BX |
| 45-450405 | AZUR 35D System 4mm x 5cm |
| 45-450410 | AZUR 35D System 4mm x 10cm |
| 45-450415 | AZUR 35D System 4mm x 15cm |
| 45-450610 | AZUR 35D System 6mm x 10cm |
| 45-450615 | AZUR 35D System 6mm x 15cm |
| 45-450620 | AZUR 35D System 6mm x 20cm |
| 45-450815 | AZUR 35D System 8mm x 15cm |
| 45-450820 | AZUR 35D System 8mm x 20cm |
| 45-451015 | AZUR 35D System 10mm x 15cm |
| 45-451020 | AZUR 35D System 10mm x 20cm |
| 45-451215 | AZUR 35D System 12mm x 15cm |
| 45-451220 | AZUR 35D System 12mm x 20cm |
| 45-451230 | AZUR 35D System 12mm x 30cm |
| 45-451520 | AZUR 35D System 15mm x 20cm |
| 45-451530 | AZUR 35D System 15mm x 30cm |
| 45-452020 | AZUR 35D System 20mm x 20cm |
| 45-452030 | AZUR 35D System 20mm x 30cm |
AZUR HydroCoil Pushable .018"
| Product Code | Description 3/BX |
| 45-280202 | AZUR 18P System 2mm x 2cm |
| 45-280302 | AZUR 18P System 3mm x 2cm |
| 45-280304 | AZUR 18P System 3mm x 4cm |
| 45-280402 | AZUR 18P System 4mm x 2cm |
| 45-280404 | AZUR 18P System 4mm x 4cm |
| 45-280406 | AZUR 18P System 4mm x 6cm |
| 45-280504 | AZUR 18P System 5mm x 4cm |
| 45-280506 | AZUR 18P System 5mm x 6cm |
| 45-280510 | AZUR 18P System 5mm x 10cm |
| 45-280514 | AZUR 18P System 5mm x 14cm |
| 45-280606 | AZUR 18P System 6mm x 6cm |
| 45-280610 | AZUR 18P System 6mm x 10cm |
| 45-280614 | AZUR 18P System 6mm x 14cm |
| 45-280620 | AZUR 18P System 6mm x 20cm |
| 45-280810 | AZUR 18P System 8mm x 10cm |
| 45-280814 | AZUR 18P System 8mm x 14cm |
| 45-280820 | AZUR 18P System 8mm x 20cm |
| 45-281014 | AZUR 18P System 10mm x 14cm |
| 45-281020 | AZUR 18P System 10mm x 20cm |
AZUR HydroCoil Pushable .035"
| Product Code | Description 3/BX |
| 45-250404 | AZUR 35P System 4mm x 4cm |
| 45-250406 | AZUR 35P System 4mm x 6cm |
| 45-250506 | AZUR 35P System 5mm x 6cm |
| 45-250510 | AZUR 35P System 5mm x 10cm |
| 45-250610 | AZUR 35P System 6mm x 10cm |
| 45-250614 | AZUR 35P System 6mm x 14cm |
| 45-250810 | AZUR 35P System 8mm x 10cm |
| 45-250814 | AZUR 35P System 8mm x 14cm |
| 45-250820 | AZUR 35P System 8mm x 20cm |
| 45-251014 | AZUR 35P System 10mm x 14cm |
| 45-251020 | AZUR 35P System 10mm x 20cm |
| 45-251514 | AZUR 35P System 15mm x 14cm |
| 45-251520 | AZUR 35P System 15mm x 20cm |
| 45-251620 | AZUR 35P System 16mm x 20cm |
PRODUCT CODES CONTROLLER
Detachment Controller for use with Detachable Systems
| Product Code | Description - Pack of 5 |
| 45-4001 | AZUR Detachment Controller |

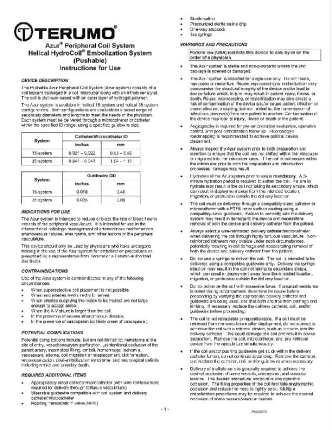

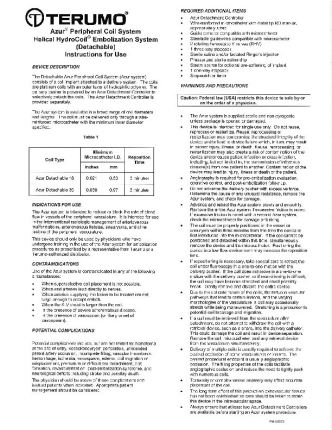

DOCUMENTS
REFERENCES
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
- Plenk H, Killer M, Richling B. Pathophysiologic considerations on HydroCoil- and platinum coil-occluded retrieved human cerebral aneurysms. Presented at ASITN MicroVention Symposium. 2005. (in-vivo study)
- Ding YH, Dai D, Lewis DA, Cloft HJ, Kallmes DF. Angiographic and histologic analysis of experimental aneurysms embolized with platinum coils, Matrix, and HydroCoil. AJNR Am J Neuroradiol. 2005 Aug;26(7):1757-63. (animal study)
- Sluzewski M, van Rooij WJ, Slob MJ, Bescós JO, Slump CH, Wijnalda D. Relation between aneurysm volume, packing, and compaction in 145 cerebral aneurysms treated with coils. Radiology. 2004;231(3):653-658.
- www.Angiocalc.com
- Data on file, 2014.
*Instructions For Use PD110088 Rev. B Revised 2012-11 and PD110090 Rev. A Revised 2012-11.
