GLIDESHEATH™ Hydrophilic Coated Introducer Sheath
PRODUCT OVERVIEW
The GLIDESHEATH You Know and Trust

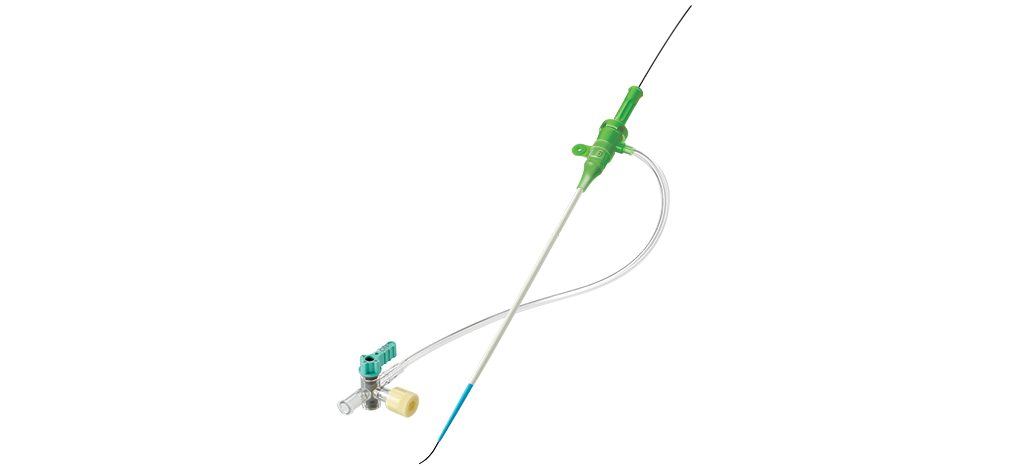

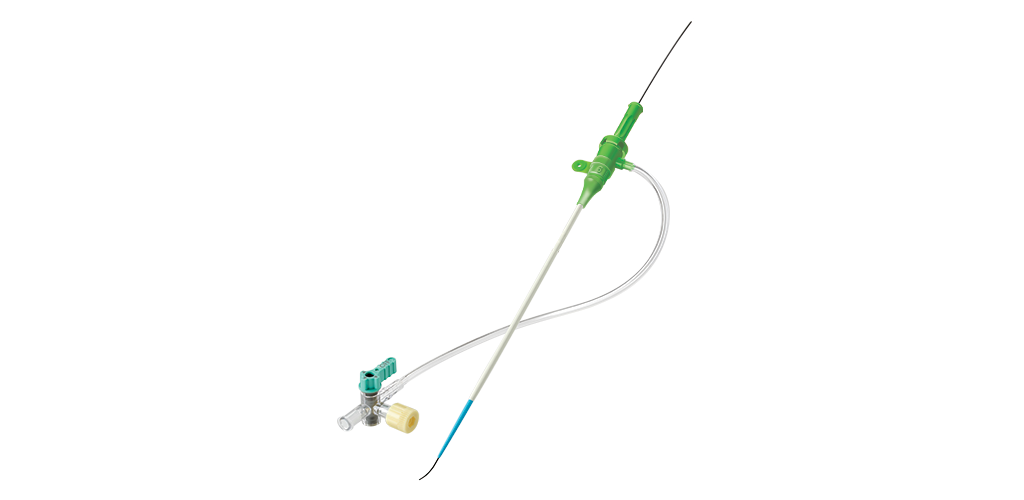

The GLIDESHEATH Introducer System is a radial access kit specifically designed and intended for smooth atraumatic radial access to minimize the risk of scarring and damage.1
- Incorporates full length Terumo Glide TechnologyTM to ensure easy insertion and removal
- Offers kink resistance to keep the lumen open throughout the procedure
- Four kit styles that can meet your radial access needs
PRODUCT CODES
GLIDESHEATH Access Kit* Access Method: Double Wall Puncture
| Product Code | Sheath Size (Fr) | Sheath Inner Diameter (in) | Tip Inner Diameter (in) | Sheath length (cm) | Needle Size (g) | Needle Length(mm) | Guidewire Size (in) | Guidewire Length (cm) | Guidewire |
| 30-1045 | 4 | 0.061 | 0.055 | 10 | 20 | 32 | 0.025 | 45 | Plastic/Short Taper/Angle |
| 30-1055 | 5 | 0.074 | 0.068 | 10 | 20 | 32 | 0.025 | 45 | Plastic/Short Taper/Angle |
| 30-1065 | 6 | 0.087 | 0.082 | 10 | 20 | 32 | 0.025 | 45 | Plastic/Short Taper/Angle |
| 30-1040 | 4 | 0.061 | 0.055 | 10 | 22 | 25 | 0.021 | 45 | Plastic/Short Taper/Angle |
| 30-1050 | 5 | 0.074 | 0.068 | 10 | 22 | 25 | 0.021 | 45 | Plastic/Short Taper/Angle |
| 30-1060 | 6 | 0.087 | 0.082 | 10 | 22 | 25 | 0.021 | 45 | Plastic/Short Taper/Angle |
| 30-2550 | 5 | 0.074 | 0.068 | 25 | 22 | 25 | 0.021 | 80 | Plastic/Short Taper/Angle |
| 30-2560 | 6 | 0.087 | 0.082 | 25 | 22 | 25 | 0.021 | 80 | Plastic/Short Taper/Angle |
* Includes GLIDESHEATH, SURFLO IV Catheter, Dilator, 2.5 mL Syringe, Nitinol/Plastic Mini Guidewire
GLIDESHEATH
| Product Code | Sheath Size (Fr) | Sheath Inner Diameter (in) | Tip Inner Diameter (in) | Sheath length (cm) | Guidewire Size (in) | Guidewire Length (cm) | Guidewire |
| 40-1040 | 4 | 0.061 | 0.055 | 10 | 0.021 | 45 | Spring/Straight |
| 40-1050 |
5 | 0.074 | 0.068 | 10 | 0.021 | 45 | Spring/Straight |
| 40-1060 |
6 | 0.087 | 0.082 | 10 | 0.021 | 45 | Spring/Straight |
| 40-1640 |
4 | 0.061 | 0.055 | 16 | 0.021 | 80 | Spring/Straight |
| 40-1650 | 5 | 0.074 | 0.068 | 16 | 0.021 | 80 | Spring/Straight |
| 40-1660 | 6 | 0.087 | 0.082 | 16 | 0.021 | 80 | Spring/Straight |
| 40-2540 | 4 | 0.061 | 0.055 | 25 | 0.021 | 80 | Spring/Straight |
| 40-2550 | 5 | 0.074 | 0.068 | 25 | 0.021 | 80 | Spring/Straight |
| 40-2560 | 6 | 0.087 | 0.082 | 25 | 0.021 | 80 | Spring/Straight |
GLIDESHEATH .035
| Product Code | Sheath Size (Fr) | Sheath Inner Diameter (in) | Tip Inner Diameter (in) | Sheath length (cm) | Guidewire Size (in) | Guidewire Length (cm) | Guidewire |
| 35-1060 | 6 | 0.087 | 0.082 | 10 | 0.035 | 45 | Spring/J-Tip |
| 35-1660 | 6 | 0.087 | 0.082 | 16 | 0.035 | 80 | Spring/J-Tip |
| 35-2560 | 6 | 0.087 | 0.082 | 25 | 0.035 | 80 | Spring/J-Tip |
GLIDESHEATH SS Access Method: Anterior Wall Puncture
| Product Code | Sheath Size (Fr) | Sheath Inner Diameter (in) | Tip Inner Diameter (in) | Sheath length (cm) | Needle Size (g) | Needle Length(mm) | Guidewire Size (in) | Guidewire Length (cm) | Guidewire |
| 20-1050 | 5 | 0.074 | 0.068 | 10 | 21 | 35 | 0.021 | 45 | Spring/Straight |
| 20-2550 | 5 | 0.074 | 0.068 | 25 | 21 | 35 | 0.021 | 80 | Spring/Straight |
| 20-1055 | 5 | 0.074 | 0.068 | 10 | 20 | 35 | 0.025 | 45 | Spring/Straight |
| 20-1060 | 6 | 0.087 | 0.082 | 10 | 21 | 35 | 0.021 | 45 | Spring/Straight |
| 20-2560 | 6 | 0.087 | 0.082 | 25 | 21 | 35 | 0.021 | 80 | Spring/Straight |
| 20-1065 | 6 | 0.087 | 0.082 | 10 | 20 | 35 | 0.025 | 45 | Spring/Straight |
| 20-2565 | 6 | 0.087 | 0.082 | 25 | 20 | 35 | 0.025 | 80 | Spring/Straight |
GLIDESHEATH Nitinol Access Method: Anterior Wall Puncture
| Product Code | Sheath Size (Fr) | Sheath Inner Diameter (in) | Tip Inner Diameter (in) | Sheath length (cm) | Needle Size (g) | Needle Length(in) | Guidewire Size (in) | Guidewire Length (cm) | Guidewire |
| 15-1050 | 5 | 0.074 | 0.068 | 10 | 21 | 1.5 | 0.021 | 43 | Nitinol/Floppy Tip |
| 15-1060 | 6 | 0.087 | 0.082 | 10 | 21 | 1.5 | 0.021 | 43 | Nitinol/Floppy Tip |
