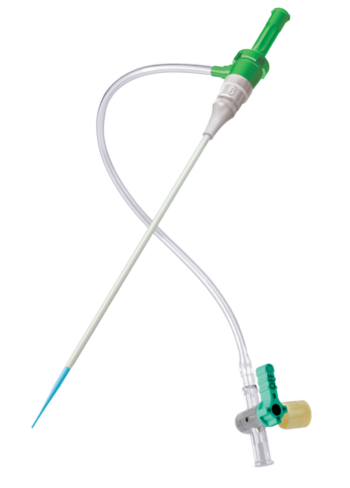

Product image: GLIDESHEATH SLENDER Hydrophilic Coated Introducer Sheath

GLIDESHEATH SLENDER® Hydrophilic Coated Introducer Sheath

PRODUCT OVERVIEW

RADIAL ACCESS WITHOUT COMPROMISE1

The Glidesheath Slender Sheath is designed with a thin wall structure where the outside diameter is reduced by one French size while the inner-diameter equivalent is maintained.

The Glidesheath Slender Sheath is coated with Terumo’s proprietary Glide Technology™ hydrophilic coating, allowing for smooth insertion and removal.

FEATURES & BENEFITS

SPASM

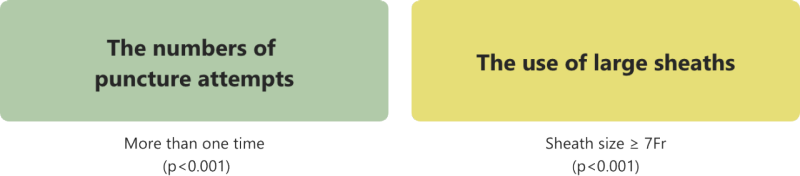

RAS (Radial artery spasm) registry concluded predictors of spasm are

The numbers of puncture attempts (more than one time p less than 0.001)). The use of large sheaths (sheath size greater than or equal to 7Fr (p less than 0.001))

Goldsmit A et al. Catheter Cardiovasc Interv. 2014 Jan 1;83(1):E32-6

BEST IN CLASS HYDROPHILIC COATING & TAPERED TIP DESIGN3

Per the American Heart Association, dedicated radial sheaths with hydrophilic coating combined with smaller diameter sheaths and a tapered tip design may reduce risk of arterial spasm and radial occlusion2

Featuring Terumo’s Glide Technology™, the Glidesheath Slender Sheath is the only thin wall radial sheath on the market to demonstrate superior and consistent performance in lubricity and lubricity durability over time3

The Glidesheath Slender Sheath is the only thin wall sheath that demonstrated best in class performance in all of the American Heart Association’s identified critical features that lead to reduced spasm4

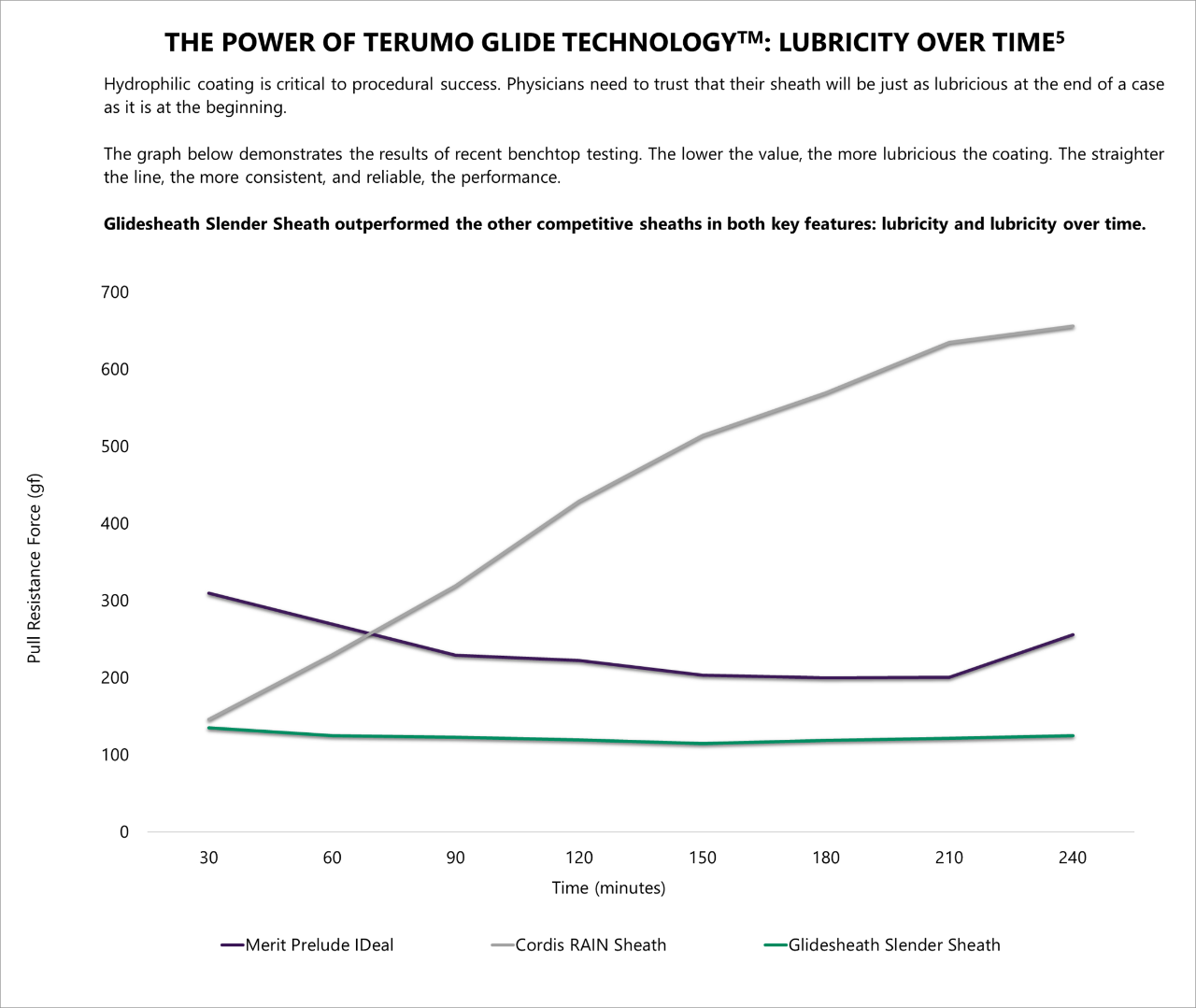

Chart showing Glidesheath Slender Sheath outperformed the other competitive sheaths in both key features: lubricity and lubricity over time

THIN WALL TECHNOLOGY

The thin wall technology featured on the Glidesheath Slender Sheath is designed to facilitate atraumatic radial access while maintaining an optimal sheath-to-artery ratio

Allows physicians to perform diagnostic and interventional procedures without upsizing to a larger sheath

UNMATCHED CLINICAL EVIDENCE6

A meta-analysis of 10 clinical papers, involving 3,821 patients, demonstrated that use of Glidesheath Slender Sheath is associated with high rates of procedural success and low rates in performance related issues

In studies measuring patient comfort, patients who underwent percutaneous transradial procedures with the Glidesheath Slender Sheath reported none to low amounts of pain

THE MARKET LEADER IN RADIAL ACCESS7

In recent market research, the Glidesheath Slender Introducer Sheath was identified as the most recognized, most influential, most utilized and most trusted radial access sheath in the market

TIPS & TRICKS OF COATED SHEATH

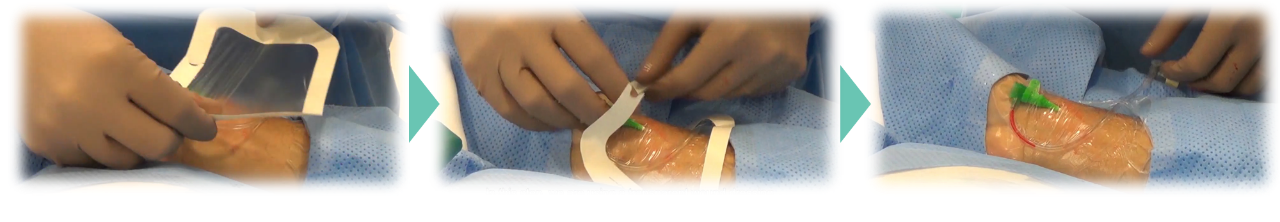

Transparent surgical dressing tape can prevent sheath slippage during procedure.

Pictures of application of transparent surgical dressing tape over product

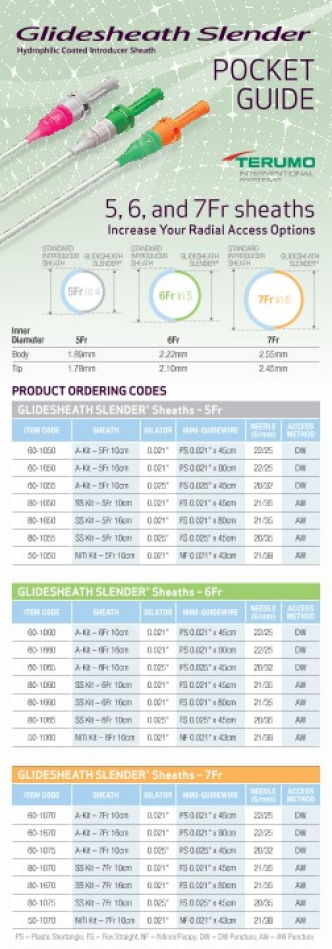

PRODUCT CODES

The Glidesheath Slender Introducer Sheath comes in three kit options: Access, Stainless Steel and Nitinol. Please see below for more information.

STAINLESS STEEL

The Glidesheath Slender® Stainless Steel Kit is intended for anterior wall puncture and is available in 5F, 6F and 7F sizes with length options of 10cm and 16cm. Each kit comes with a stainless steel guidewire and needle. Kit configurations are listed below:

Item Code

Sheath

Dilator

Mini-Guidewire

Needle

Access Method

80-1050

SS Kit – 5F 10cm

0.021”

Flex Straight 0.021” x 45cm

21G 35mm

Anterior Wall

80-1055

SS Kit – 5F 10cm

0.025”

Flex Straight 0.025” x 45cm

20G 35mm

Anterior Wall

80-1060

SS Kit – 6F 10cm

0.021”

Flex Straight 0.021” x 45cm

21G 35mm

Anterior Wall

80-1065

SS Kit – 6F 10cm

0.025”

Flex Straight 0.025” x 45cm

20G 35mm

Anterior Wall

80-1070

SS Kit – 7F 10cm

0.021”

Flex Straight 0.021” x 45cm

21G 35mm

Anterior Wall

80-1075

SS Kit – 7F 10cm

0.025”

Flex Straight 0.025” x 45cm

20G 35mm

Anterior Wall

80-1650

SS Kit – 5F 16cm

0.021”

Flex Straight 0.021” x 80cm

21G 35mm

Anterior Wall

80-1660

SS Kit – 6F 16cm

0.021”

Flex Straight 0.021” x 80cm

21G 35mm

Anterior Wall

80-1670

SS Kit – 7F 16cm

0.021”

Flex Straight 0.021” x 80cm

21G 35mm

Anterior Wall

ACCESS KIT

The Glidesheath Slender® Access Kit is intended for double wall puncture and is available in 5F, 6F and 7F sizes with length options of 10cm and 16cm. Each kit comes with a plastic jacketed guidewire and angiocath needle. Kit configurations are listed below:

Item Code

Sheath

Dilator

Mini-Guidewire

Needle

Access Method

60-1050

A-Kit – 5F 10cm

0.021”

Plastic Shortangle 0.021” x 45cm

22G 25mm

Double Wall

60-1055

A-Kit – 5F 10cm

0.025”

Plastic Shortangle 0.025” x 45cm

20G 32mm

Double Wall

60-1060

A-Kit – 6F 10cm

0.021”

Plastic Shortangle 0.021” x 45cm

22G 25mm

Double Wall

60-1065

A-Kit – 6F 10cm

0.025”

Plastic Shortangle 0.025” x 45cm

20G 32mm

Double Wall

60-1070

A-Kit – 7F 10cm

0.021”

Plastic Shortangle 0.021” x 45cm

22G 25mm

Double Wall

60-1075

A-Kit – 7F 10cm

0.025”

Plastic Shortangle 0.025” x 45cm

20G 32mm

Double Wall

60-1650

A-Kit – 5F 16cm

0.021”

Plastic Shortangle 0.021” x 80cm

22G 25mm

Double Wall

60-1660

A-Kit – 6F 16cm

0.021”

Plastic Shortangle 0.021” x 80cm

22G 25mm

Double Wall

60-1670

A-Kit – 7F 16cm

0.021”

Plastic Shortangle 0.021” x 80cm

22G 25mm

Double Wall

NITINOL KIT

The Glidesheath Slender® Nitinol Kit is intended for anterior wall puncture and is available in 5F, 6F and 7F sizes with a length of 10cm. Each kit comes with a nitinol guidewire and needle. Kit configurations are listed below:

Item Code

Sheath

Dilator

Mini-Guidewire

Needle

Access Method

50-1050

Nitinol Kit – 5F 10cm

0.021”

Nitinol/Floppy 0.021” x 43cm

21G 38mm

Anterior Wall

50-1060

Nitinol Kit – 6F 10cm

0.021”

Nitinol/Floppy 0.021” x 43cm

21G 38mm

Anterior Wall

50-1070

Nitinol Kit – 7F 10cm

0.021”

Nitinol/Floppy 0.021” x 43cm

21G 38mm

Anterior Wall

DOCUMENTS

Glidesheath Slender Brochure
Vascular Access Management Brochure

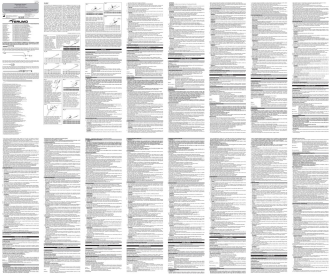

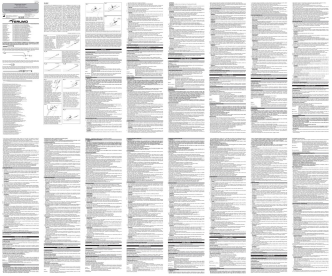

Glidesheath Slender IFU
TC Latex Letter
TMC Latex Declaration Letter V2
TC Materials of Concern Letter

REFERENCES

RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.


1. Data on file.
3, 5. When compared to the existing thin wall sheaths on the market: Merit Prelude IDeal and Cordis RAIN Sheath. The third-party trademarks used herein are trademarks of their respective owners. Data on file.
2. Mason. et al; Transradial Coronary Angiography and Intervention in ACS. Circ Cardiovasc Interv. 2018;11:e000035
4. Identified features are: “hydrophilic coating, smaller diameter and tapered tip design.” Mason. et al; Transradial Coronary Angiography and Intervention in ACS. Circ Cardiovasc Interv. 2018;11:e000035. When compared to the existing thin wall sheaths on the market: Merit Prelude IDeal and Cordis RAIN Sheath. The third-party trademarks used herein are trademarks of their respective owners. Data on file.
6. The Glidesheath Slender Sheath demonstrated unmatched clinical evidence in a third-party meta-analysis of clinical access studies. Data on file.
7. Data on file, pertains to North American market only.
